10th Gen Civic Rear Sway Bar Compatible with 11th Gen

11GenSonicSi

Member
First Name
Delin
Joined
Feb 21, 2022
Threads
2
Messages
19
Reaction score
21
Location
Seattle
Vehicle(s)
2022 Honda Civic Si
Just installed rear sway bar on my Si today. Overall it’s the same shape and thickness bar from 10th gen. Mounting points are the same. Difference is on bushing and brackets. 11th gen rear bar has brackets pinned to backing plates. Brackets can not pop out and be reused.

For those who needs a part number of 10th gen bracket: 52308-TBA-A10
Also stronger end links are recommended as stock end link is PVC/ABS plastic. I went with Accord aluminum end link: 52320-TLB-A00

Some aftermarket bars do come with brackets and end links. Might be something to consider.

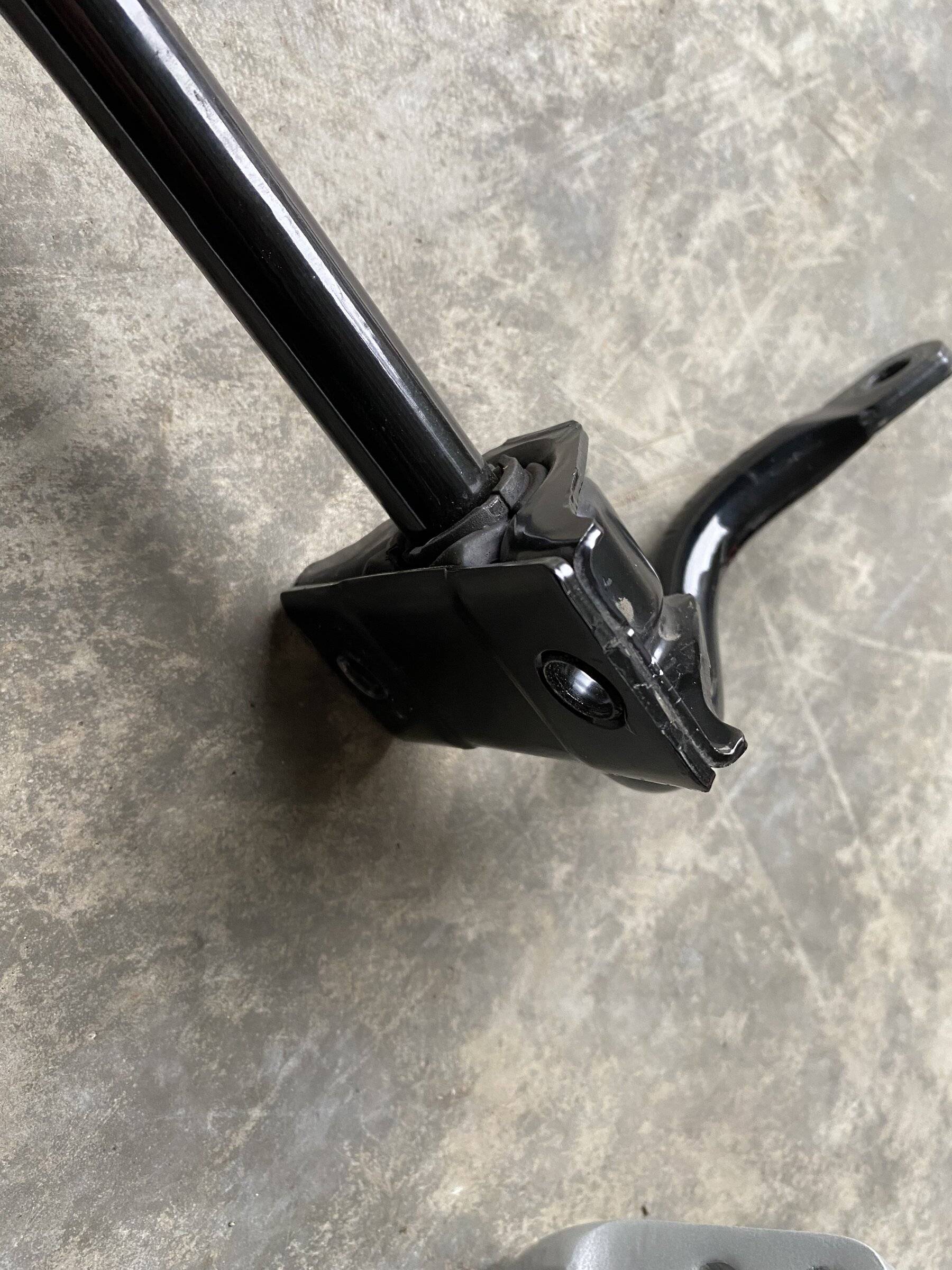

Pinned together bracket:

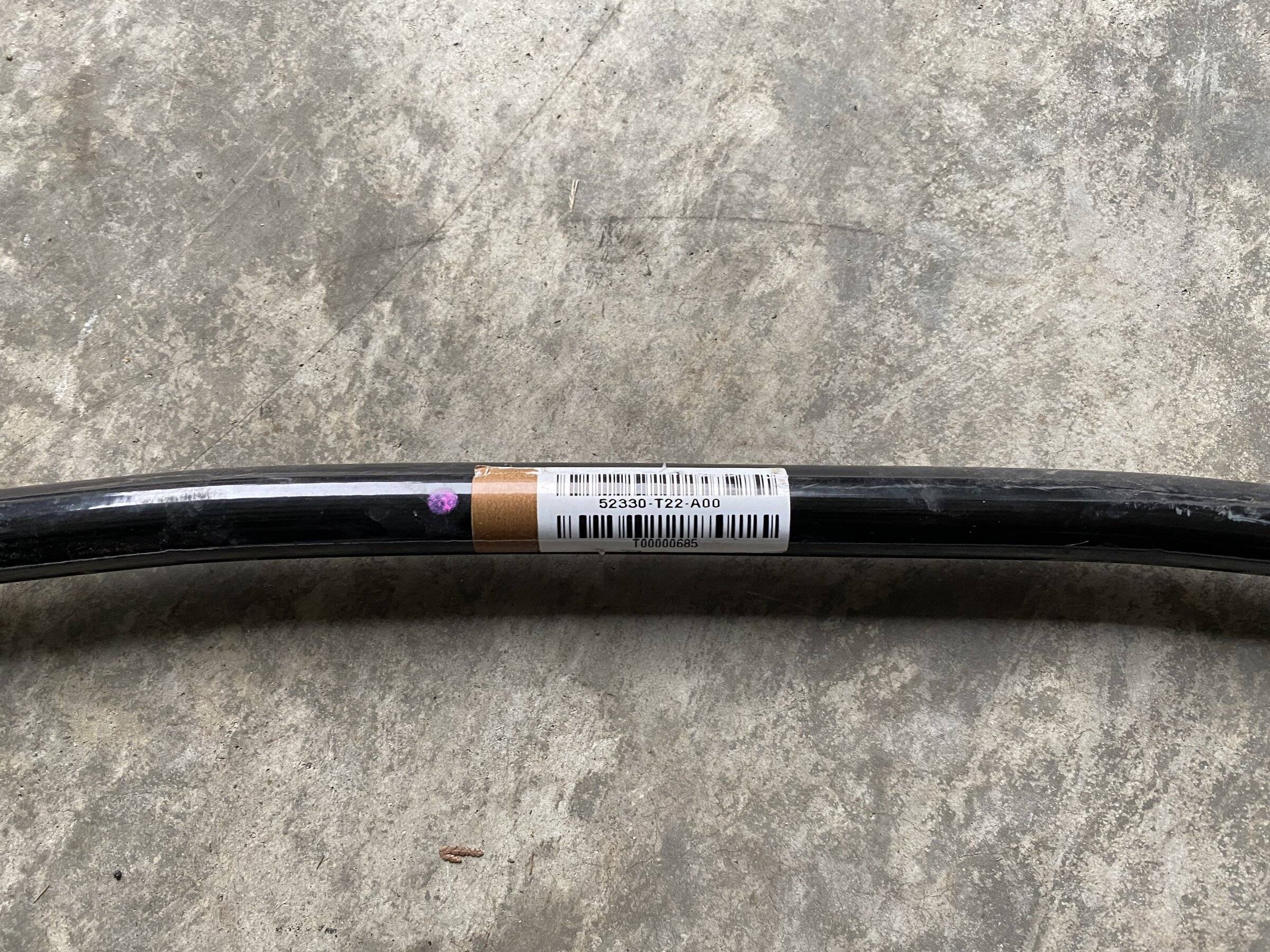

11th gen Si bar part number:

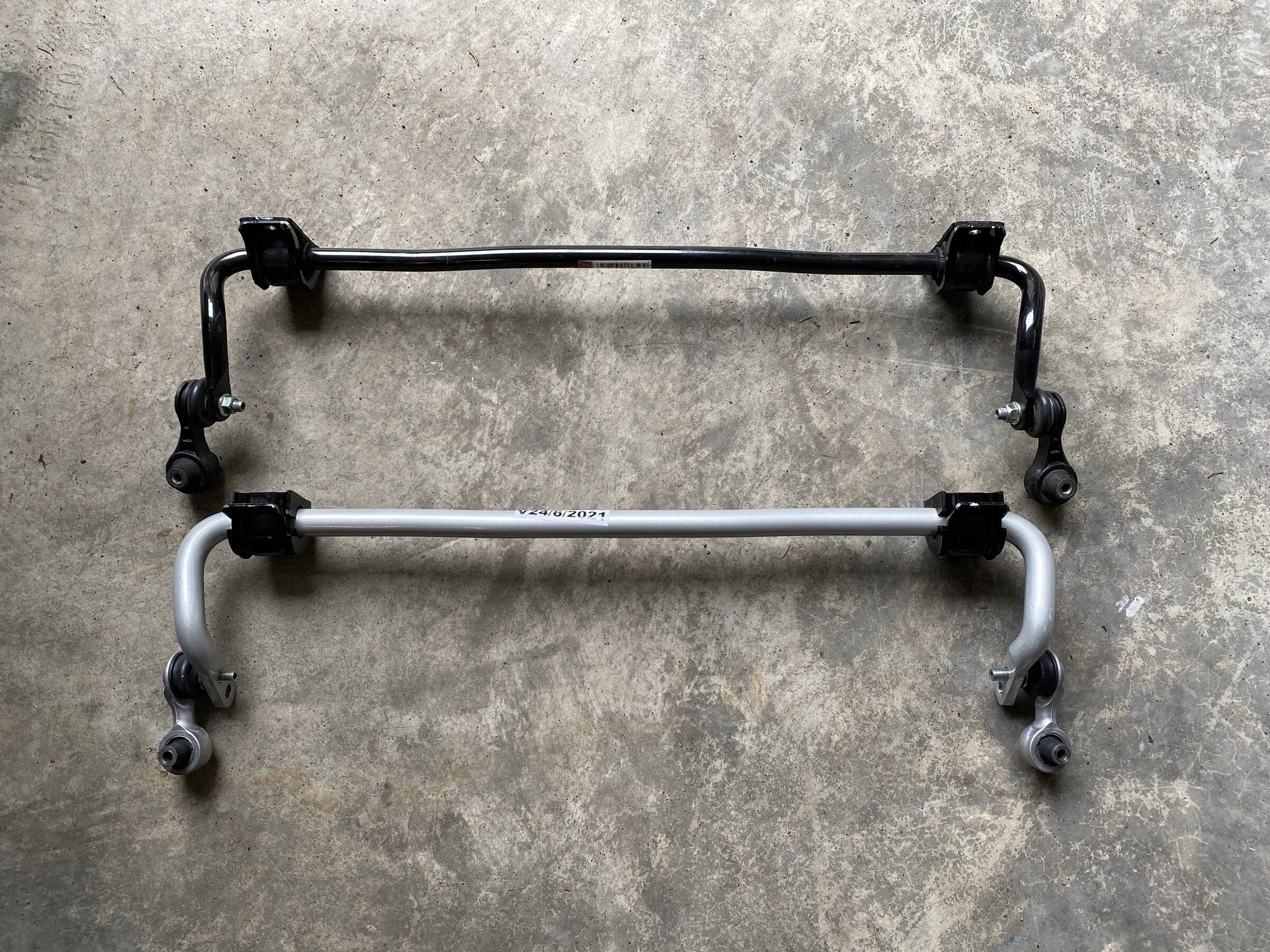

11th bar vs an aftermarket 10th 22mm bar:


OP
OP
11GenSonicSi

11GenSonicSi

Member
First Name
Delin
Joined
Feb 21, 2022
Threads
2
Messages
19
Reaction score
21
Location
Seattle
Vehicle(s)
2022 Honda Civic Si
How differently does it handle?
It was raining yesterday so I haven’t get a chance testing out the rotation. Next track day is early April.
On street cruising it makes little to no difference to ride comfort. Rear is stiffer on slopes and over bumps.



OP
OP
11GenSonicSi

11GenSonicSi

Member
First Name
Delin
Joined
Feb 21, 2022
Threads
2
Messages
19
Reaction score
21
Location
Seattle
Vehicle(s)
2022 Honda Civic Si
That's the Whiteline bar correct?
Yes it is the Whiteline 22mm bar. I had to bore out the four end link mounting holes a bit with a dremel. Might be a little tough to fellas w/o a drill or dremel.

To your 27WON race car how about Karcept? ?


[email protected]

REDEFINE the Aftermarket
First Name
Vincent
Joined
Nov 24, 2017
Threads
79
Messages
1,444
Reaction score
1,078
Location
Las Vegas, NV
Website
www.27won.com
Vehicle(s)
17 HBS, 18 SI, 18 CTR, 14 Ridgeline
Yes it is the Whiteline 22mm bar. I had to bore out the four end link mounting holes a bit with a dremel. Might be a little tough to fellas w/o a drill or dremel.

To your 27WON race car how about Karcept? ?
We run the same 22mm Whiteline bar right now. We installed it with the Whiteline end-links as well so we did not have to drill anything out. ALl just bolted up.


Nitro22

New Member
Joined
Oct 4, 2017
Threads
0
Messages
2
Reaction score
0
Location
Cali
Vehicle(s)
2013 Scion FR-S
Does anyone know if the front sway bars are the same between the 10th and 11th Gen?
