Hi!

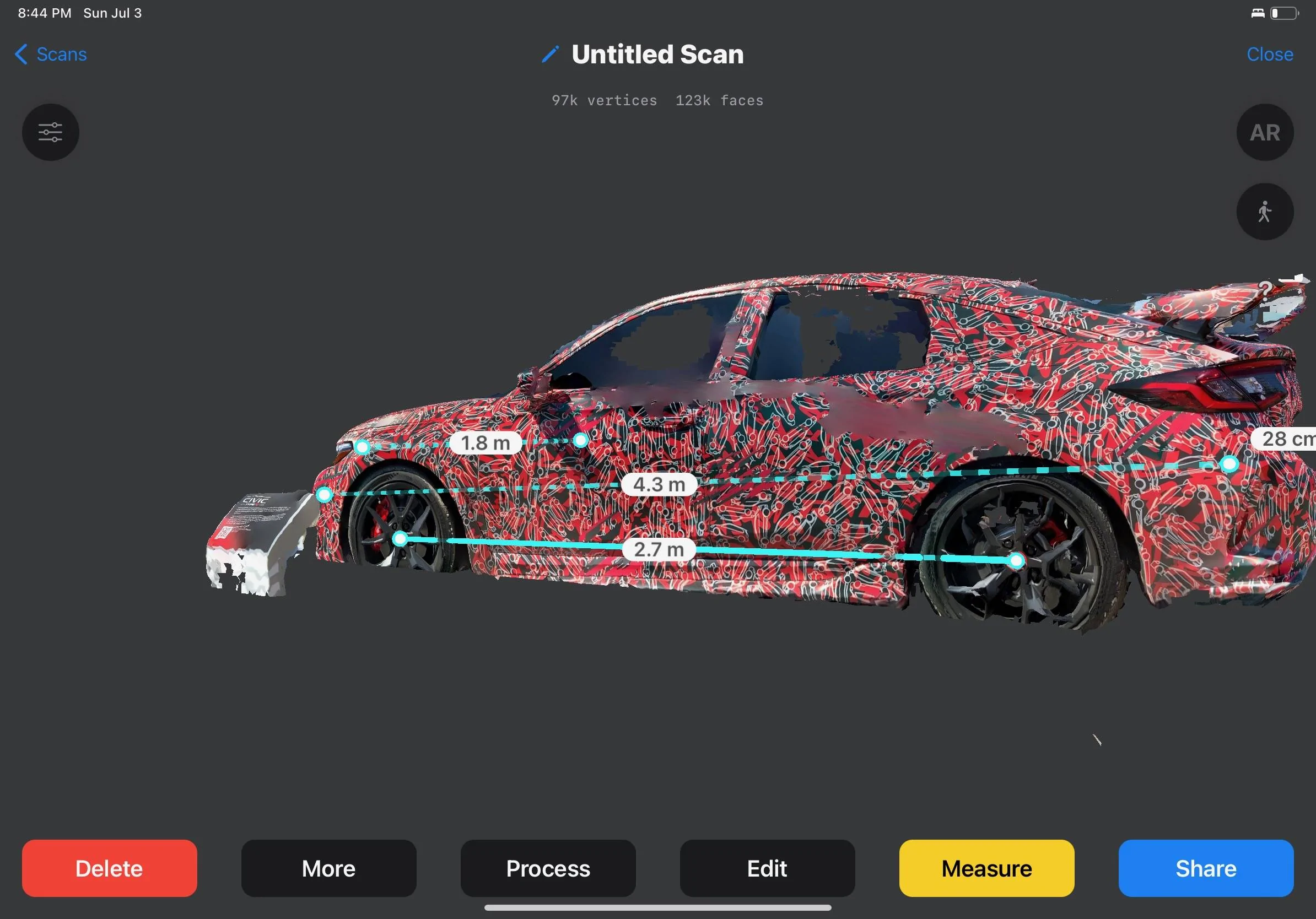

We were at MidOhio to see the new TypeR. We were talking with folks who are anxious to get their hands on one to scan it in and start designing performance parts when I remembered we brought a scanner of sorts. Here’s some of the results. More to come…gotta move them from one device to the other.
Wheel center to wheel center distance 1.8m is from one tire to the other. Measurements are +-2%





11GenImUnsure

Senior Member
First Name
11thGen
Joined
Nov 13, 2020
Threads
38
Messages
167
Reaction score
335
Location
Bay Area
Car(s)
Feet
Hi!
We were at MidOhio to see the new TypeR. We were talking with folks who are anxious to get their hands on one to scan it in and start designing performance parts when I remembered we brought a scanner of sorts. Here’s some of the results. More to come…gotta move them from one device to the other.
Wheel center to wheel center distance 1.8m is from one tire to the other. Measurements are +-2%


Great thinking! Can't wait to see your final provisions when having transferred over the rest of your scans.

Any measurements of vehicle width within those measurements you took? FK8 measures 73.9" at its widest area, so that is the number to beat.

OP
OP

17CivicTypeR_Brian

Aiming for 400whp out of the TypeR.
Joined
Oct 14, 2015
Threads
5
Messages
3,357
Reaction score
30
Location
York PA USA
Car(s)
'17 Black CTR #4071, 16 MDX Tech
Great thinking! Can't wait to see your final provisions when having transferred over the rest of your scans.

Any measurements of vehicle width within those measurements you took? FK8 measures 73.9" at its widest area, so that is the number to beat.
The best width we could get is that 1.8m which is just about 71” so I’m fairly sure that is a bad number. I need to compile all the scans into one to try and get to more confidence.


type_ramen

Senior Member
First Name
Keiothic Zero
Joined
Feb 21, 2020
Threads
0
Messages
66
Reaction score
9
Location
Denton, TX
Car(s)
2019 Civic Type R
who can I get in contact with to get the 3d model? I make rock guards for the 10th gen/FK8, i'd love to be able to make something at day 1 launch of the FL5

OP
OP

17CivicTypeR_Brian

Aiming for 400whp out of the TypeR.
Joined
Oct 14, 2015
Threads
5
Messages
3,357
Reaction score
30
Location
York PA USA
Car(s)
'17 Black CTR #4071, 16 MDX Tech
who can I get in contact with to get the 3d model? I make rock guards for the 10th gen/FK8, i'd love to be able to make something at day 1 launch of the FL5
My kid did the scans. He’s 10 so…you can hit me up. [email protected] and we’ll figure out how to get them to you from there!
I don’t know if they’ll have the level of detail you need…but if you got a friend going to LA for the reveal, they could set it up!


type_ramen

Senior Member
First Name
Keiothic Zero
Joined
Feb 21, 2020
Threads
0
Messages
66
Reaction score
9
Location
Denton, TX
Car(s)
2019 Civic Type R
My kid did the scans. He’s 10 so…you can hit me up. [email protected] and we’ll figure out how to get them to you from there!
I don’t know if they’ll have the level of detail you need…but if you got a friend going to LA for the reveal, they could set it up!
assuming they let anyone that isn't the press stand that closely and scan with professional equipment
