Headlight schematics?

Brisco

Senior Member
First Name
Matt
Joined
May 14, 2018
Threads
10
Messages
188
Reaction score
6
Location
Kitchener
Car(s)
2018 Aegean Blue Civic Touring
Does anyone have access to the Honda database that would be able to give me the headlight schematics for the 11th generation headlights?


sgtmorph

Senior Member
Joined
Feb 3, 2016
Threads
44
Messages
616
Reaction score
309
Location
Long Island, New York
Car(s)
2022 Civic Sport Hatchback (BB)
Vehicle Showcase
1

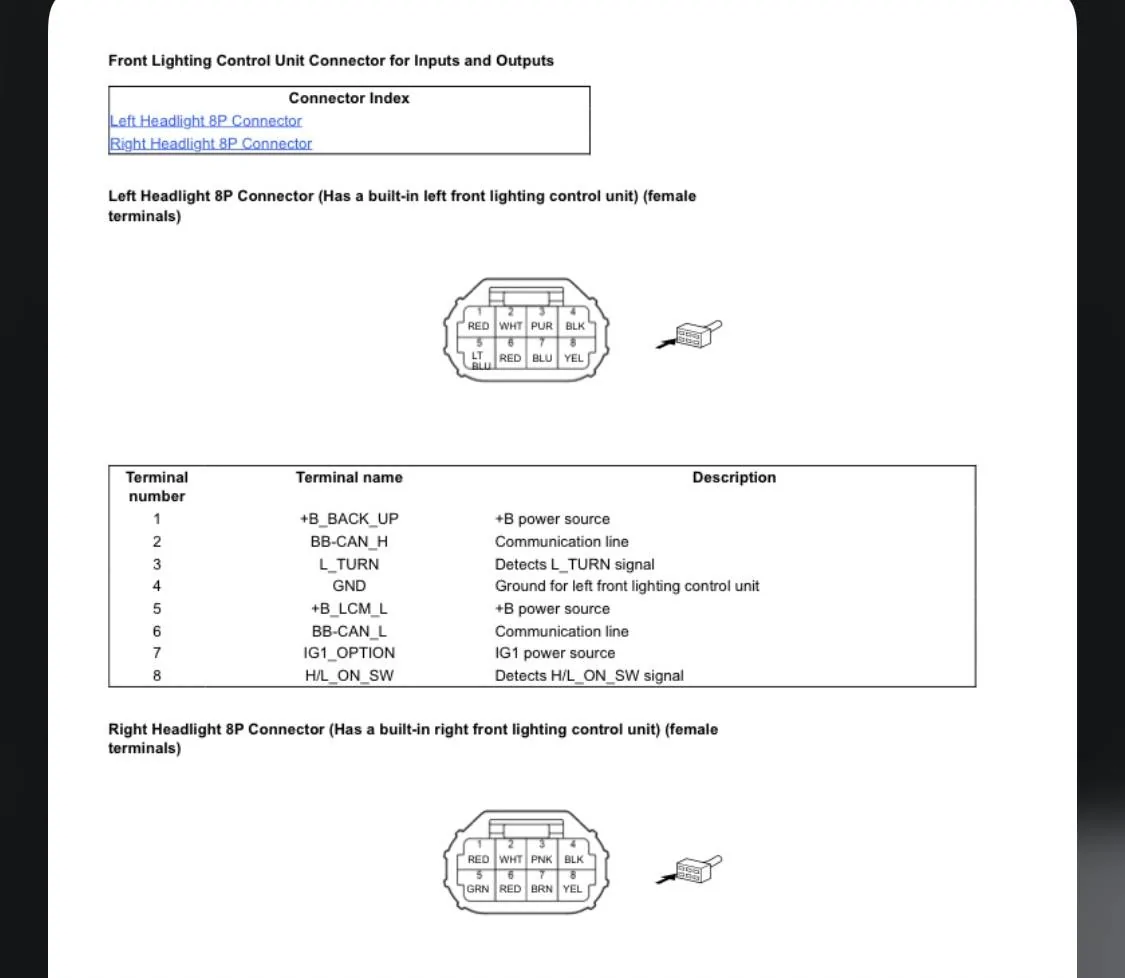

You talking about something like this?
This is one of the many pages related to the 2022 civics

OP
OP
Brisco

Brisco

Senior Member
First Name
Matt
Joined
May 14, 2018
Threads
10
Messages
188
Reaction score
6
Location
Kitchener
Car(s)
2018 Aegean Blue Civic Touring
I believe that’s called the pin out but what I’m looking at is the wiring schematic which would be possibly called a line diagram?

Is that the only plug on the back of these headlights? On the 10th generation it has 18 pin plug with seven wires in it and 13 pin plug with three wires in it.


sgtmorph

Senior Member
Joined
Feb 3, 2016
Threads
44
Messages
616
Reaction score
309
Location
Long Island, New York
Car(s)
2022 Civic Sport Hatchback (BB)
Vehicle Showcase
1
I believe that’s called the pin out but what I’m looking at is the wiring schematic which would be possibly called a line diagram?

Is that the only plug on the back of these headlights? On the 10th generation it has 18 pin plug with seven wires in it and 13 pin plug with three wires in it.
I‘ll have look tomorrow on PC.
The mobile version sucks.


OGGsr

Senior Member
First Name
Jamie
Joined
Dec 4, 2021
Threads
6
Messages
115
Reaction score
88
Location
Richmond VA
Car(s)
PWP 2022 Civic Si
I believe that’s called the pin out but what I’m looking at is the wiring schematic which would be possibly called a line diagram?

Is that the only plug on the back of these headlights? On the 10th generation it has 18 pin plug with seven wires in it and 13 pin plug with three wires in it.
I had the hood open on mine yesterday and noticed only one plug as far as I could tell. This is the first car I've owned with LED headlights. I assume if a diode (?) goes out, you have to replace the whole assembly?


sgtmorph

Senior Member
Joined
Feb 3, 2016
Threads
44
Messages
616
Reaction score
309
Location
Long Island, New York
Car(s)
2022 Civic Sport Hatchback (BB)
Vehicle Showcase
1
I had the hood open on mine yesterday and noticed only one plug as far as I could tell. This is the first car I've owned with LED headlights. I assume if a diode (?) goes out, you have to replace the whole assembly?
Happens all the time at the shop, if customer has an LED go out, we gotta eat the entire $700+ (lets say it’s a headlight or whatever) if it’s under warranty.

EZ fix for us as tech, but expensive AF for Honda Corpo ¯\_(ツ)_/¯

OP
OP
Brisco

Brisco

Senior Member
First Name
Matt
Joined
May 14, 2018
Threads
10
Messages
188
Reaction score
6
Location
Kitchener
Car(s)
2018 Aegean Blue Civic Touring
Happens all the time at the shop, if customer has an LED go out, we gotta eat the entire $700+ (lets say it’s a headlight or whatever) if it’s under warranty.

EZ fix for us as tech, but expensive AF for Honda Corpo ¯\_(ツ)_/¯
What do you guys have to do with the warrantee headlights? I would love to get my hands on the 10th generation set of LED headlights that already need work. Since in my spare time I do custom work.


sgtmorph

Senior Member
Joined
Feb 3, 2016
Threads
44
Messages
616
Reaction score
309
Location
Long Island, New York
Car(s)
2022 Civic Sport Hatchback (BB)
Vehicle Showcase
1
What do you guys have to do with the warrantee headlights? I would love to get my hands on the 10th generation set of LED headlights that already need work. Since in my spare time I do custom work.
Unfortunately, I wouldn’t be able to get you a set. What typically happens, a customer brings their Honda to service. Headlight or taillight, if even a single LED goes out, and the customer is still under warranty, we replace the entire unit free. Then we send the faulted unit back to Corpo where they have techs look into what caused the failure.

OP
OP
Brisco

Brisco

Senior Member
First Name
Matt
Joined
May 14, 2018
Threads
10
Messages
188
Reaction score
6
Location
Kitchener
Car(s)
2018 Aegean Blue Civic Touring
You talking about something like this?
This is one of the many pages related to the 2022 civics
So is this confirmed that this is the only plug on these 2022 headlights? Normally the eight pin is accessible but the three pin is off to the outer edge behind the inner fender. At least that’s for the 10th GEN but it’s very possible this is the only one on the 11th


sgtmorph

Senior Member
Joined
Feb 3, 2016
Threads
44
Messages
616
Reaction score
309
Location
Long Island, New York
Car(s)
2022 Civic Sport Hatchback (BB)
Vehicle Showcase
1
So is this confirmed that this is the only plug on these 2022 headlights? Normally the eight pin is accessible but the three pin is off to the outer edge behind the inner fender. At least that’s for the 10th GEN but it’s very possible this is the only one on the 11th
I‘ll look again, I didn’t scroll thru all of it, I just noticed that part and snapped a pic. I’ll get back to ya ??

OP
OP
Brisco

Brisco

Senior Member
First Name
Matt
Joined
May 14, 2018
Threads
10
Messages
188
Reaction score
6
Location
Kitchener
Car(s)
2018 Aegean Blue Civic Touring

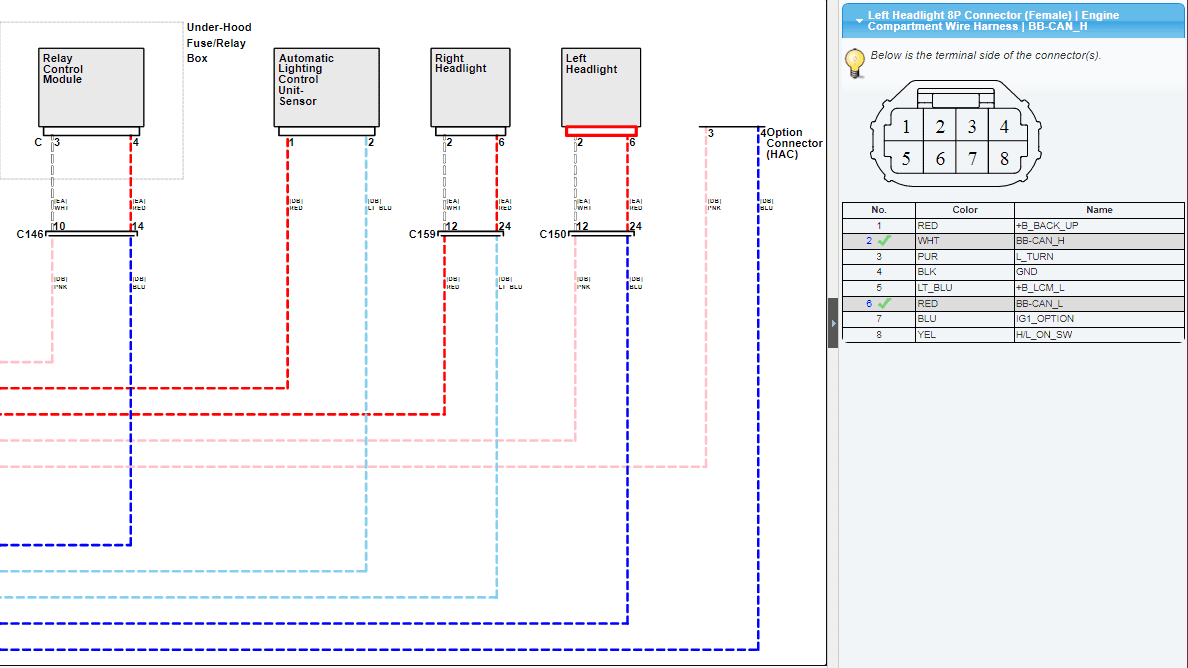

Awesome information guys thank you so much. It looks like I can’t help anyone out with these. They are full on computer controlled.

OP
OP
Brisco

Brisco

Senior Member
First Name
Matt
Joined
May 14, 2018
Threads
10
Messages
188
Reaction score
6
Location
Kitchener
Car(s)
2018 Aegean Blue Civic Touring
Is there a chance that somebody could take me a nice detailed photo of the headlight plug while it’s unplugged from the car. I just want to make sure what connecter it is. Front back side? Unless maybe somebody has an OEM part number?
