Mirror Color Change DIY

Color change; or keep the Blacked out mirrors?

  • Body color

  • Basic Black

  • Color different than body

  • carbon overlay


Results are only viewable after voting.

Splice247

Member
First Name
Jeremy
Joined
Jan 2, 2023
Threads
1
Messages
17
Reaction score
14
Location
Ohio
Vehicle(s)
23 Type R
Personally I can't stand gloss black anything especially on the interior or exterior of cars. Really hard to keep clean and it scratches extremely easy. So part 1 of my de-black-ification is changing to body color mirrors. Really brings back that 90s Honda styling and matches the rest of the car. Please feel free to reference these part numbers for your color of choice, as always please verify they are correct with your dealer before ordering as I am not responsible for you ordering wrong parts. They ran me $38 with tax for both sides. Of course with all the different colors you don't have to match the body.

Right
76201-T20-A31ZA R513 Rallye Red
76201-T20-A31ZB NH904m Meteoroid Gray
76201-T20-A31ZC NH883P Platinum White
76201-T20-A31ZD NH877P Sonic Gray
76201-T20-A31ZE NH830M Lunar Silver
76201-T20-A31ZF NH731P Crystal Black
76201-T20-A31YB RP61P Smokey Mauve
76201-T20-A31YC B637P Boost Blue

Left
76251-T20-A31ZA R513 Rallye Red
76251-T20-A31ZB NH904m Meteoroid Gray
76251-T20-A31ZC NH883P Platinum White
76251-T20-A31ZD NH877P Sonic Gray
76251-T20-A31ZE NH830M Lunar Silver
76251-T20-A31ZF NH731P Crystal Black
76251-T20-A31YB RP61P Smokey Mauve
76251-T20-A31YC B637P Boost Blue

As far as install there are two methods you can use. The first mirror I opted to remove the glass entirely (as I referenced a youtube video). Tilt the glass to one side and you can slide a screwdriver between the white base and the black clips that are attached to the glass. Simply twist to separate. Repeat on all four locations to pop the glass out. There are two connectors to unclip. From there you have full access to the inside. I found re-clipping the glass to the housing was very difficult. I would not choose this option again.

Option 2 is what I tried 2nd after noticing you can access the mirror cap clips just by tilting the glass. You only need to access the one to force it out enough to create a gap on the exterior. I did this by jamming a clip underneath the clip and wedging it in place. Once you create a gap in the corner by the turn signal gently insert a small pocket screwdriver enough to get a gap on top and slip in your plastic pry tool. After you slip that in just work around the sides and pull out. Good chance you break some clips on the original. After removal simply line up your new cap and snap into place. It is important to note even if you fully remove the glass you can still only access 2 of the 4 clips, as the other are in a blind hole.

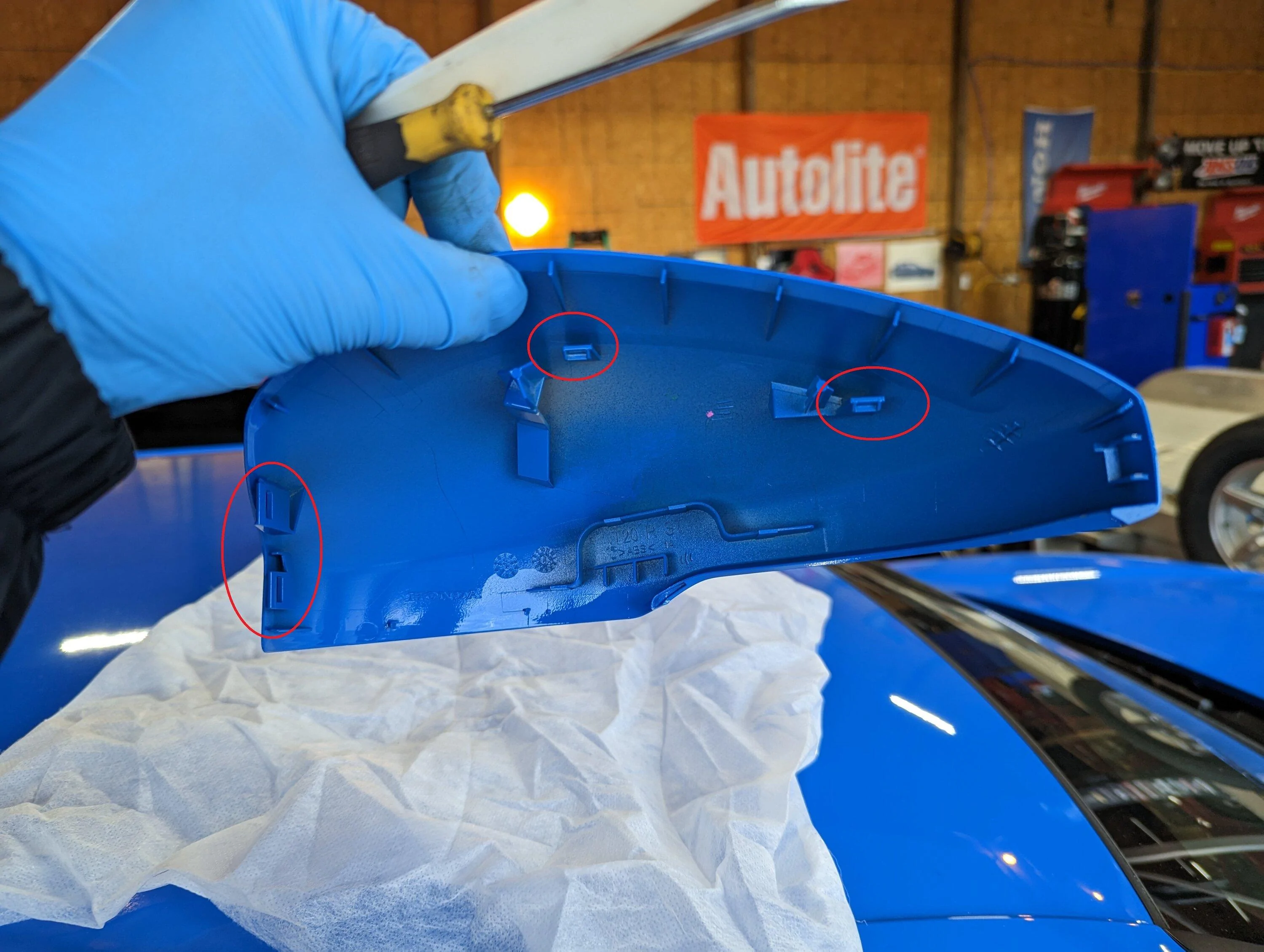

11th Gen Honda Civic Mirror Color Change DIY PXL_20230301_224026007.MP

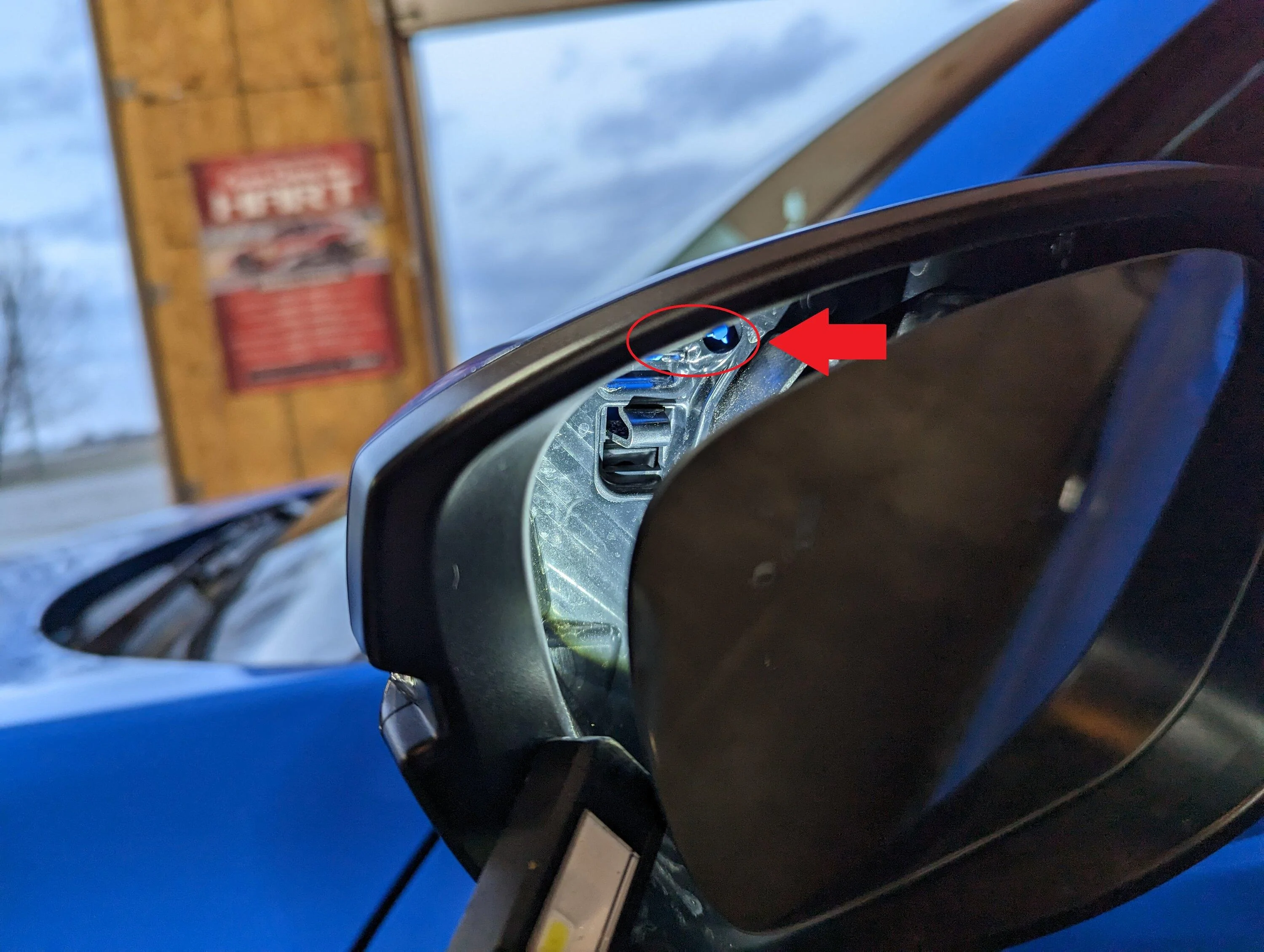

11th Gen Honda Civic Mirror Color Change DIY PXL_20230301_231717665

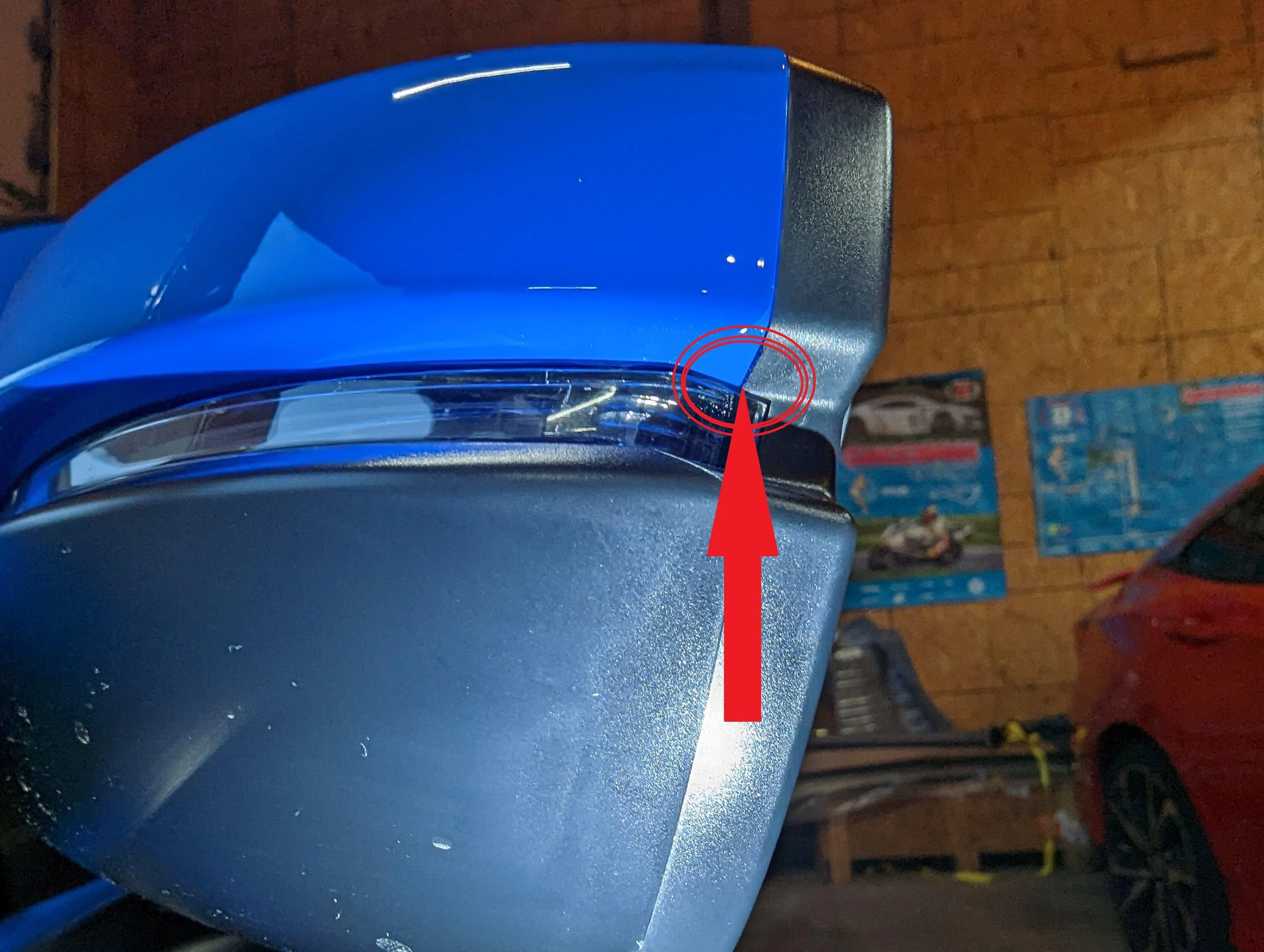

11th Gen Honda Civic Mirror Color Change DIY PXL_20230301_231725035

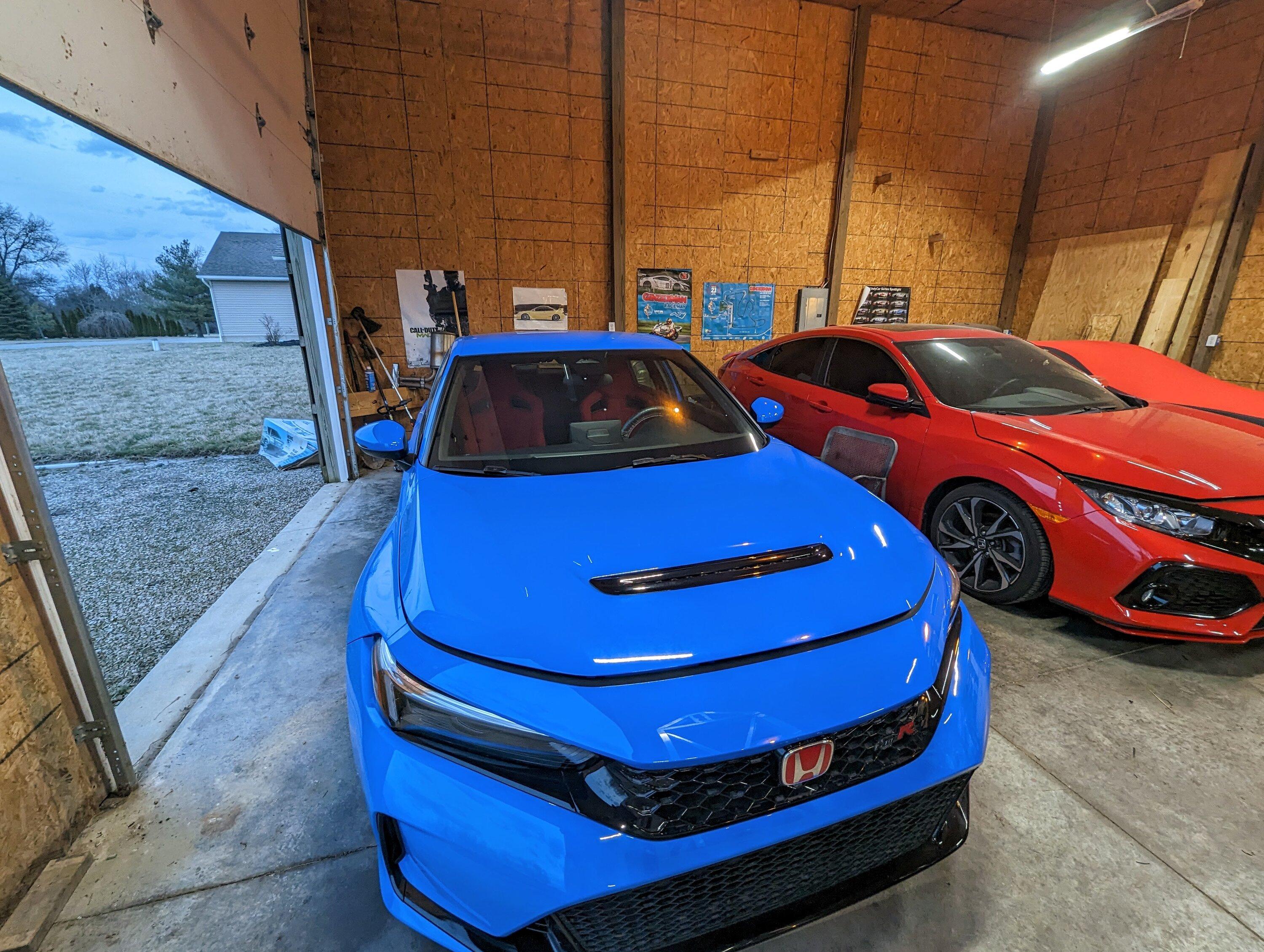

11th Gen Honda Civic Mirror Color Change DIY PXL_20230301_232249699
Sponsored



FreshFL5

Member
Joined
Nov 1, 2022
Threads
2
Messages
19
Reaction score
45
Location
Norcal
Vehicle(s)
2023 Civic Type R
Thanks for sharing! When I replaced my mirror caps I did method #1 and it was a PITA. If I ever swap them out I’ll refer to your DIY for method #2 haha.


TypeRD

Senior Member
First Name
Ryan
Joined
Jan 20, 2023
Threads
2
Messages
1,171
Reaction score
1,177
Location
IL
Vehicle(s)
2023 Civic Type-R
That looks really good. Note, I think the black mirror housings are perhaps a nod to (I believe) the last Type R that was made in Japan (i.e. the Honda NSX Type R)…which also had a black wing.

Last edited:

machimself

Senior Member
First Name
Michael
Joined
Jul 21, 2022
Threads
13
Messages
249
Reaction score
200
Location
98311
Vehicle(s)
2023 Civic Type R
Personally I can't stand gloss black anything especially on the interior or exterior of cars. Really hard to keep clean and it scratches extremely easy. So part 1 of my de-black-ification is changing to body color mirrors. Really brings back that 90s Honda styling and matches the rest of the car. Please feel free to reference these part numbers for your color of choice, as always please verify they are correct with your dealer before ordering as I am not responsible for you ordering wrong parts. They ran me $38 with tax for both sides. Of course with all the different colors you don't have to match the body.

Right
76201-T20-A31ZA R513 Rallye Red
76201-T20-A31ZB NH904m Meteoroid Gray
76201-T20-A31ZC NH883P Platinum White
76201-T20-A31ZD NH877P Sonic Gray
76201-T20-A31ZE NH830M Lunar Silver
76201-T20-A31ZF NH731P Crystal Black
76201-T20-A31YB RP61P Smokey Mauve
76201-T20-A31YC B637P Boost Blue

Left
76251-T20-A31ZA R513 Rallye Red
76251-T20-A31ZB NH904m Meteoroid Gray
76251-T20-A31ZC NH883P Platinum White
76251-T20-A31ZD NH877P Sonic Gray
76251-T20-A31ZE NH830M Lunar Silver
76251-T20-A31ZF NH731P Crystal Black
76251-T20-A31YB RP61P Smokey Mauve
76251-T20-A31YC B637P Boost Blue

As far as install there are two methods you can use. The first mirror I opted to remove the glass entirely (as I referenced a youtube video). Tilt the glass to one side and you can slide a screwdriver between the white base and the black clips that are attached to the glass. Simply twist to separate. Repeat on all four locations to pop the glass out. There are two connectors to unclip. From there you have full access to the inside. I found re-clipping the glass to the housing was very difficult. I would not choose this option again.

Option 2 is what I tried 2nd after noticing you can access the mirror cap clips just by tilting the glass. You only need to access the one to force it out enough to create a gap on the exterior. I did this by jamming a clip underneath the clip and wedging it in place. Once you create a gap in the corner by the turn signal gently insert a small pocket screwdriver enough to get a gap on top and slip in your plastic pry tool. After you slip that in just work around the sides and pull out. Good chance you break some clips on the original. After removal simply line up your new cap and snap into place. It is important to note even if you fully remove the glass you can still only access 2 of the 4 clips, as the other are in a blind hole.
So you’re going down a path I’ve been considering and at $40 these are a no brainer, looking great. Are you going to do the antenna fin and spoiler as well? What to do with the lip, skirts, and diffuser? CF eventually maybe?


Clark_Kent

Senior Member
Joined
Nov 19, 2022
Threads
6
Messages
1,155
Reaction score
1,699
Location
Smallville, KS
Vehicle(s)
FL5 Civic Type R
Thanks for pulling this together. I think they look great. I noticed Championship White is not listed. Is this color not available?​



mbaapk

Senior Member
First Name
Mike
Joined
Mar 30, 2022
Threads
24
Messages
2,108
Reaction score
2,178
Location
Twin Cities
Vehicle(s)
Pacifica
Im going to get razzed because of my history but here is the solution…..PPF.


Clark_Kent

Senior Member
Joined
Nov 19, 2022
Threads
6
Messages
1,155
Reaction score
1,699
Location
Smallville, KS
Vehicle(s)
FL5 Civic Type R
Im going to get razzed because of my history but here is the solution…..PPF.
We're aligned in our thinking and ppf will be my solution for the gloss black bits (mirrors covers, rockers, b pillars, etc.) I thought to offer ppf as a solution but the OP seems more concerned with the color black and the finish (gloss) and prefers body colored pieces.


chopsuey34

Senior Member
Joined
Jul 20, 2022
Threads
3
Messages
120
Reaction score
83
Location
Michigan
Vehicle(s)
Civic Si
This is in the FL5 section, but I take it the part numbers that were posted work for all Civics? Are the side view mirrors the same between all Civics (except for the blinkers vs. non-blinking)?


AspecR

Senior Member
First Name
Stefan
Joined
Aug 23, 2022
Threads
10
Messages
1,407
Reaction score
2,336
Location
Florida
Vehicle(s)
FL5 CTR
This is in the FL5 section, but I take it the part numbers that were posted work for all Civics? Are the side view mirrors the same between all Civics (except for the blinkers vs. non-blinking)?
Correct, part numbers are the same for regular civics


s2kdriver80

Senior Member
First Name
Paul
Joined
Nov 21, 2015
Threads
4
Messages
737
Reaction score
315
Location
Long Island, New York, United States
Vehicle(s)
MY21 FK8 Honda Civic Type R, MY03 AP1 Honda S2000
Build Thread
Link
Thanks for pulling this together. I think they look great. I noticed Championship White is not listed. Is this color not available?​
These aren't available for the CTR, hence no CW. But the colored ones on the lesser Civics fit on them.

Last edited:


OP
OP

Splice247

Member
First Name
Jeremy
Joined
Jan 2, 2023
Threads
1
Messages
17
Reaction score
14
Location
Ohio
Vehicle(s)
23 Type R
Thanks for pulling this together. I think they look great. I noticed Championship White is not listed. Is this color not available?​
Champ white is exclusive to the type r, red, black, blue, and sonic gray all carry over from base model. Could just go with the pearl white, since it's not directly next to another painted piece probably will be hard to tell. Champ white is a flat white, the base model has a pearl white.

OP
OP

Splice247

Member
First Name
Jeremy
Joined
Jan 2, 2023
Threads
1
Messages
17
Reaction score
14
Location
Ohio
Vehicle(s)
23 Type R
That looks really good. Note, I think the black mirror housings are perhaps a nod to (I believe) the last Type R that was made in Japan (i.e. the Honda NSX Type R)…which also had a black wing.
Possibly, but the current trend in car design is black accents and accessories. Even the conservative Accord has a blacked out sport model. Also according to the Japanese designer the gloss black door dash and mirrors blend in with the door glass to create a seamless look. I like black trim but prefer matte, or body color when possible.


CTR

Senior Member
Joined
Dec 3, 2015
Threads
7
Messages
622
Reaction score
692
Location
WA
Vehicle(s)
2023 Civic Type R, LS Swapped FC3S
Champ white is exclusive to the type r, red, black, blue, and sonic gray all carry over from base model. Could just go with the pearl white, since it's not directly next to another painted piece probably will be hard to tell. Champ white is a flat white, the base model has a pearl white.
They are a completely different white so I don't think this is a good recommendation. Your best bet would be to buy the white so the inside is that color but then paint the outside Championship White.

OP
OP

Splice247

Member
First Name
Jeremy
Joined
Jan 2, 2023
Threads
1
Messages
17
Reaction score
14
Location
Ohio
Vehicle(s)
23 Type R
They are a completely different white so I don't think this is a good recommendation. Your best bet would be to buy the white so the inside is that color but then paint the outside Championship White.
For $20 for 1 it would be worth the shot. Could obviously have them painted, or get a color match rattle can.
