Just installed H&R springs last Thursday and decided to record and create a DIY for anyone else that is looking to tackle it on their own.
Sponsored



sam3r_11

Senior Member
Joined
Jul 8, 2022
Threads
1
Messages
220
Reaction score
143
Location
GTA, CANADA
Vehicle(s)
HRV
the OG way to lower a car just wondering i noticed you didnt torque any bolts after reinstall


dandaman15

Senior Member
Joined
Jan 11, 2023
Threads
0
Messages
95
Reaction score
151
Location
Milwaukee, Wi
Vehicle(s)
2014 RDX, 2023 Type R
Thanks for the time to make the video. Lets get this stickied at the top.

I saw other videos of people removing the front LCA's to get the front struts out but good to know it just takes some massaging with a pry bar to work it free.

OP
OP
bRYANT619

bRYANT619

Senior Member
First Name
Bryant
Joined
Sep 20, 2017
Threads
4
Messages
71
Reaction score
92
Location
SD
Vehicle(s)
17 RR CTR/15 4Runner
the OG way to lower a car just wondering i noticed you didnt torque any bolts after reinstall
I did, just not on camera 😂

I went of FK8 torque specs since my prodemand doesn’t have the complete specs for a 2023 yet.

Attached are the torque specs, go by the 3rd number which represents ft/lbs

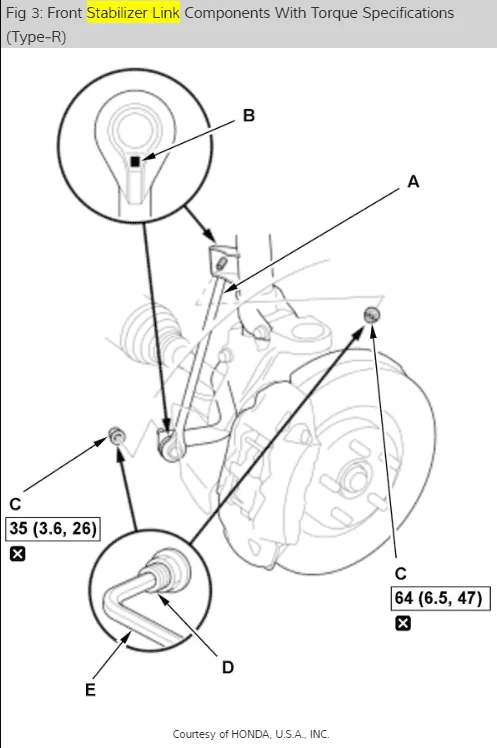

11th Gen Honda Civic DIY: FL5 Lowering Spring Install for Civic Type R [Step By Step] 1686683860252

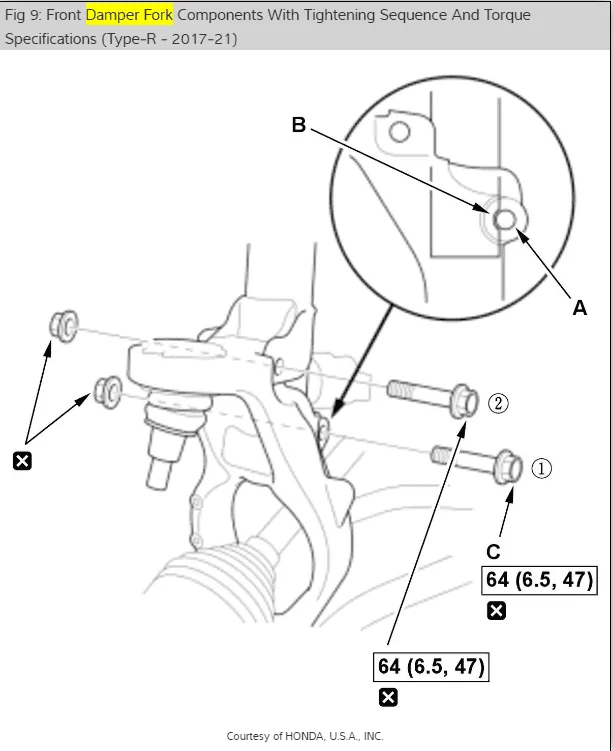

11th Gen Honda Civic DIY: FL5 Lowering Spring Install for Civic Type R [Step By Step] 1686679780451

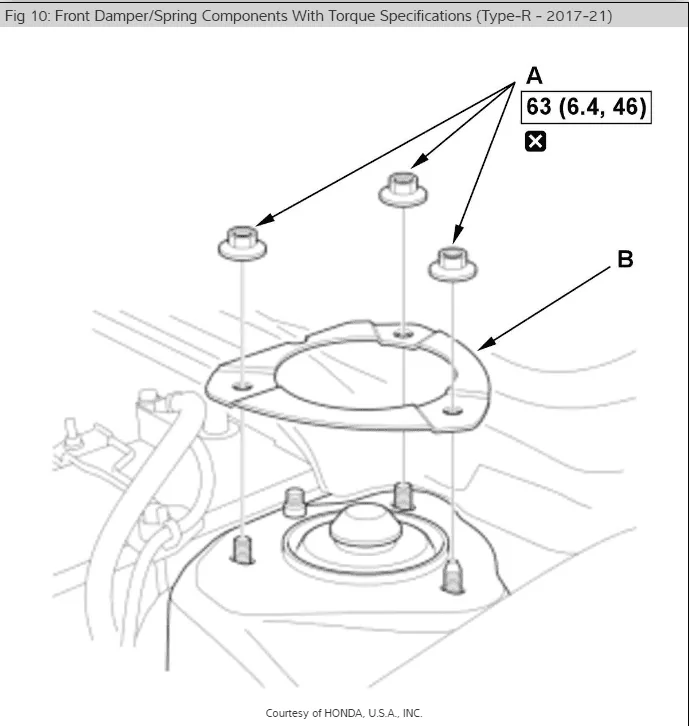

11th Gen Honda Civic DIY: FL5 Lowering Spring Install for Civic Type R [Step By Step] 1686679803573


center nut for CTR is 44 ft/lbs

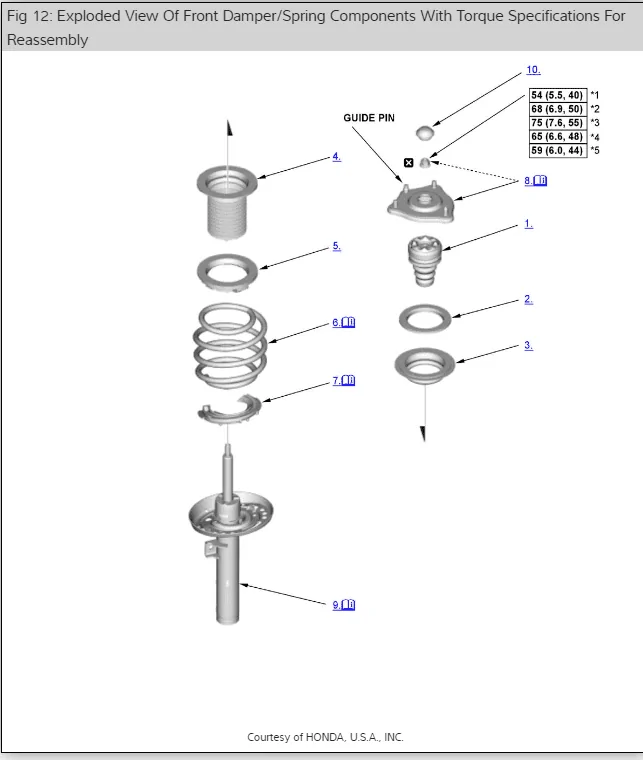

11th Gen Honda Civic DIY: FL5 Lowering Spring Install for Civic Type R [Step By Step] 1686679835622

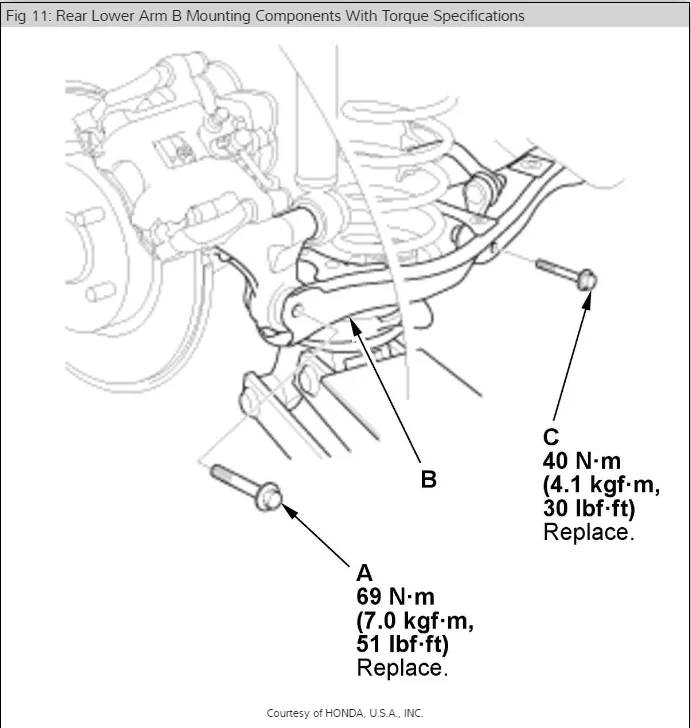

11th Gen Honda Civic DIY: FL5 Lowering Spring Install for Civic Type R [Step By Step] 1686680394028

Last edited:

sam3r_11

Senior Member
Joined
Jul 8, 2022
Threads
1
Messages
220
Reaction score
143
Location
GTA, CANADA
Vehicle(s)
HRV
amazing well done man and appreciate you sharing this valuable info and the video will subscribe to your youtube



OsosikMedia

Senior Member
First Name
Nick
Joined
Jun 15, 2017
Threads
16
Messages
77
Reaction score
131
Location
California
Vehicle(s)
2022 Civic Si, 2017 Civic SI x2
Nice Video!


jtrader

Senior Member
First Name
James
Joined
Aug 28, 2018
Threads
1
Messages
444
Reaction score
215
Location
OH
Vehicle(s)
2019 Civic Hatch Sport 6MT, 2022 Odyssey EXL
Good choice, H&R is the way to go.... 👍

OP
OP
bRYANT619

bRYANT619

Senior Member
First Name
Bryant
Joined
Sep 20, 2017
Threads
4
Messages
71
Reaction score
92
Location
SD
Vehicle(s)
17 RR CTR/15 4Runner
How long did it take?
It will honestly depend on how mechanically inclined you are. Had I not been recording and documenting the steps, the fronts would've taken 45 mins tops and the rears 15 mins. But for someone doing this for the first time, it could be 3-4 hours.

Had I done this at work, where I have a lift and a wall-mounted spring compressor then I could see the fronts being done in 20-30 mins


halohalomix206

Senior Member
Joined
Mar 14, 2019
Threads
0
Messages
176
Reaction score
6
Location
seattle
Vehicle(s)
SGP FK8 TYPE R, X5M, Mini Cooper S
how are gaining play in the suspension? I did all that and the suspension won't move and is rock solid.



OP
OP
bRYANT619

bRYANT619

Senior Member
First Name
Bryant
Joined
Sep 20, 2017
Threads
4
Messages
71
Reaction score
92
Location
SD
Vehicle(s)
17 RR CTR/15 4Runner
Did you make sure the sway bar link is disconnected on both sides?


FL5CW

Member
First Name
Clint
Joined
Aug 29, 2022
Threads
0
Messages
25
Reaction score
39
Location
Canada
Vehicle(s)
2023 Civic Type R
how are gaining play in the suspension? I did all that and the suspension won't move and is rock solid.
I followed this video and couldn’t get The movement like the OP did. I did end up getting it out, but it was a fight on both sides. I even backed off the axle nuts so I didn’t accidentally pull the joint out.

OP
OP
bRYANT619

bRYANT619

Senior Member
First Name
Bryant
Joined
Sep 20, 2017
Threads
4
Messages
71
Reaction score
92
Location
SD
Vehicle(s)
17 RR CTR/15 4Runner
I followed this video and couldn’t get The movement like the OP did. I did end up getting it out, but it was a fight on both sides. I even backed off the axle nuts so I didn’t accidentally pull the joint out.
I had to do that on both my old FK8s. Thats why I was shocked when I was able to get the front shocks out so easily on my FL5. Not sure why you guys arent getting as much play. The only thing I can think of is maybe because my car only had 400ish miles on it when I did the springs.

I did just recently swap out to Swift springs @ 1700ish miles and install went just as easy as it did the first time.
