Euro spec FL5 sound upgrade strategy

DailyDrive_R

Member
First Name
Jacob
Joined
Oct 22, 2023
Threads
2
Messages
10
Reaction score
4
Location
Germany
Vehicle(s)
FL5 Type R, S3 Elise, NA MX-5
Hello world,

as many of you may be aware most non North American FL5 Civics do not feature the Bose sound system. While I agree in principle that a light car is a better one, for my daily driver at the price of 60.000€ some better sound would be nice.
One of the differences is that the european FL5 does not feature the trunk subwoofer and while a subwoofer would of course extend the range to lower frequencies, it is mostly the upper frequencies that sound muted. In addition, the VW I had previously with his Dynaudio System also did not feature a dedicated subwoofer and had base in spares. In addition the factory boot housing to "hide" a subwoofer alone costs !500€!.... As I never put the factory system any louder than "14" it might be ok to put less "sensitive" speaker in trade for clarity.

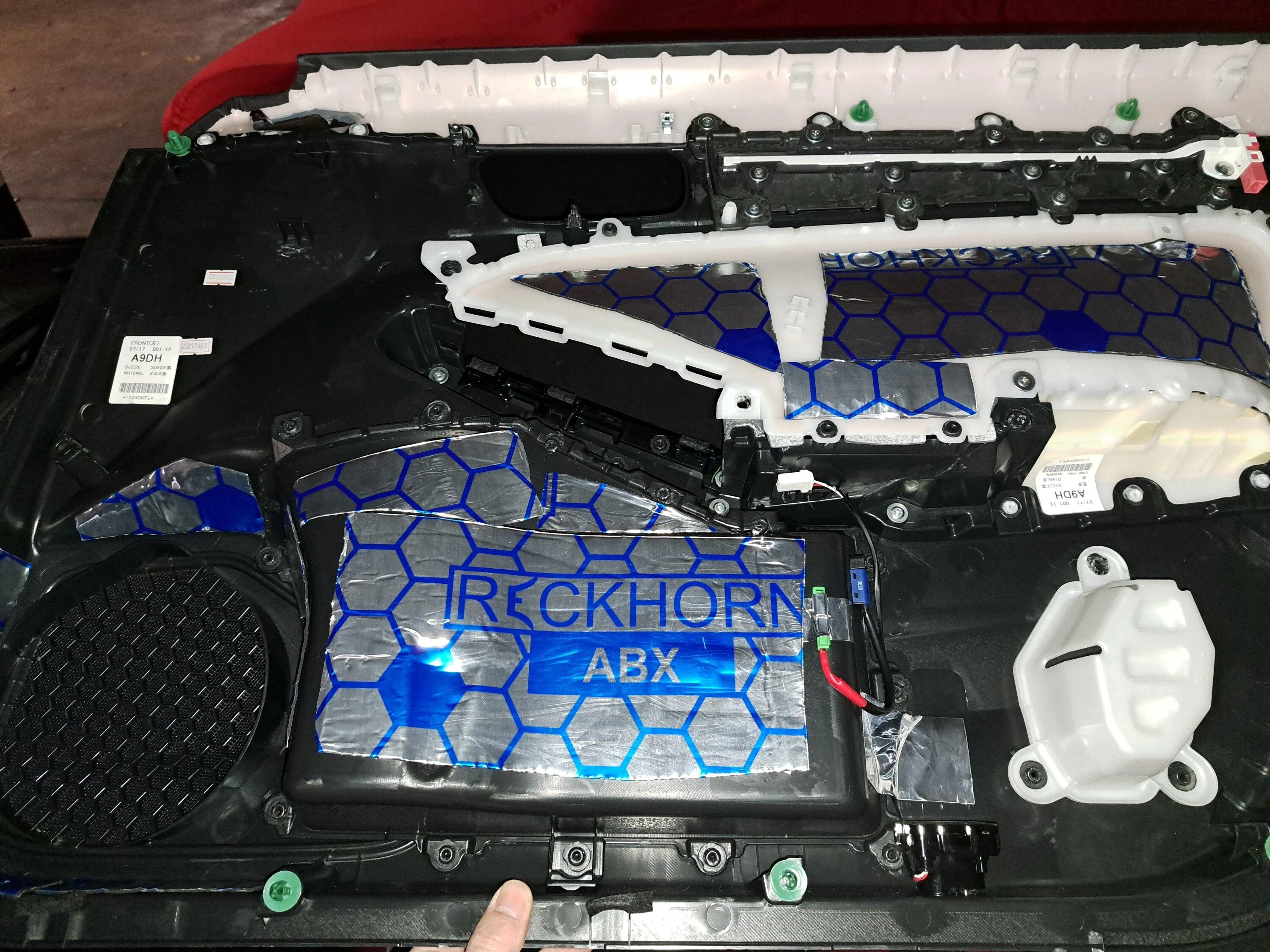

So I am considering to start my journey with a little bit of sound deadening to the doors (I know, all those kilos) and some better speakers.
There is a plug and play option available in Japan, but the shipping cost make it an unfeasable option.

To explore locally sourced options and being a total noob in terms of car audio my questions are:
- What kind of plugs do I need to get in order to connect the new speakers with the loom
- What type of / kind of diameter / speakers / tweeter do I need to source, are the rear ones any different than the front ones?
- Anything to consider to avoid ending up in a worse situation that where I started?
- Any brands proven to be a great option?
and most importantly, has anyone done that before me? I know there are already threads regarding sound system upgrades but they go way beyond what I am planning to do.

For example, I wonder if these would do the trick

Best regards
Jarob
Sponsored


Last edited:
  • Like
Reactions: rui
OP
OP

DailyDrive_R

Member
First Name
Jacob
Joined
Oct 22, 2023
Threads
2
Messages
10
Reaction score
4
Location
Germany
Vehicle(s)
FL5 Type R, S3 Elise, NA MX-5
Dear all, one follow up, are the stock speakers 16.5 cm (6.5") or 17 cm (6.75") in diameter?


Zavage

Senior Member
Joined
Aug 11, 2016
Threads
1
Messages
59
Reaction score
22
Location
Germany
Vehicle(s)
Civic EJ6, Honda Accord CU1( Acura TSX 2nd Gen)
Most questions are answered here:
https://www.crutchfield.com/car/outfitmycar/mycar.aspx
Select 2023 Honda Civic Hatchback. For EU, in this case German FL5 Type R, choose without Bose (no image) sound system.

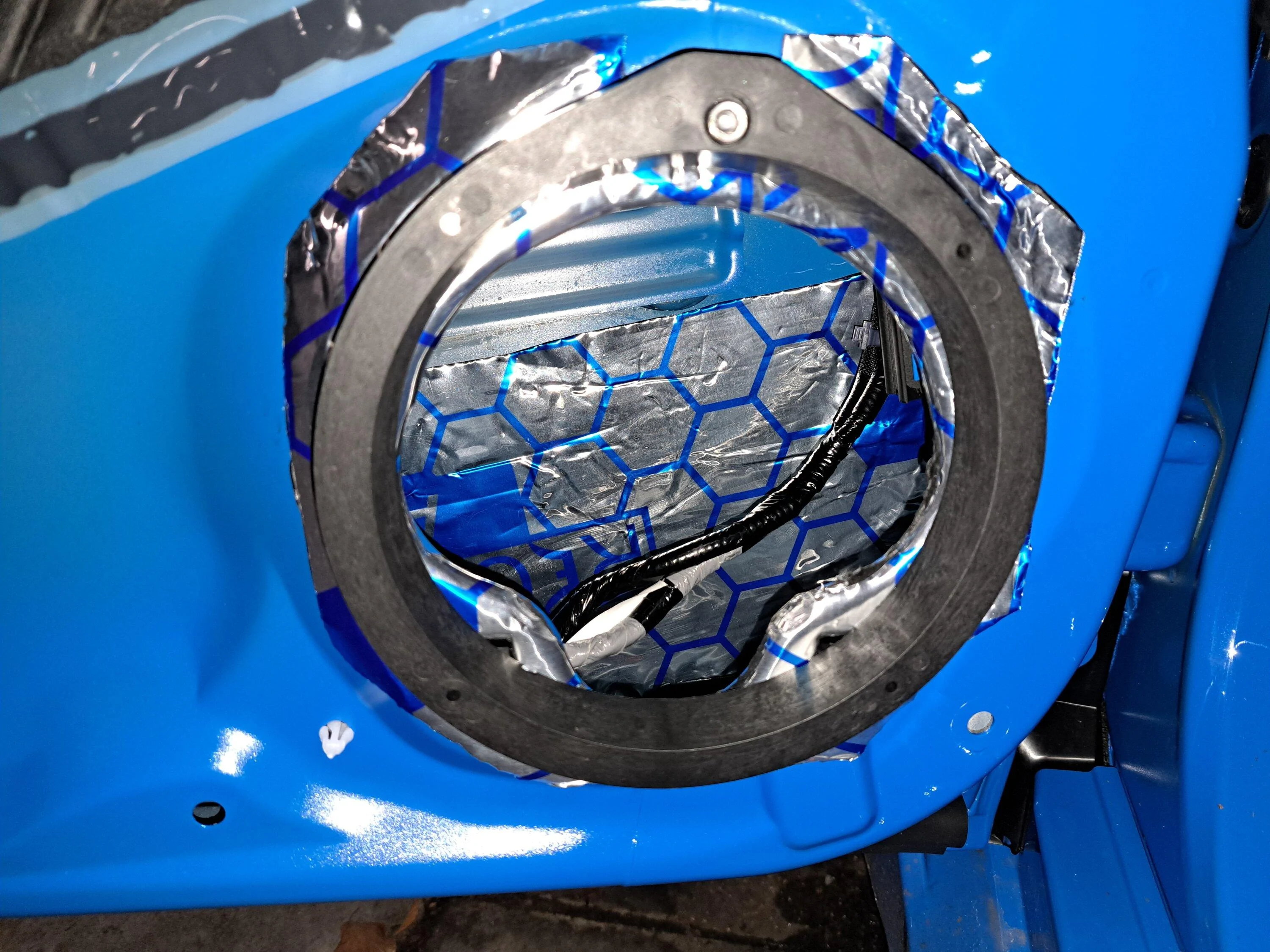

Don't forget speaker mounting brackets and please consider to use sound deadening foils. It is beside better quality speakers the other important part to improve audio quality.

" What kind of plugs do I need to get in order to connect the new speakers with the loom "
You can also solder the wires. Honda used on the 11.gen different connectors (not the same like 9. gen/10. gen), there is a thread here related to this.

For the european market i can highly recommend the brands Gladen, Eton and Helix (Audiotec Fischer). Great quality, good price and if you choose the right model: Made in Germany.
