The Telematics Control Unit is part number 8B100-T20-A11 (#34 in the below diagram):

11th Gen Honda Civic Spying on you? 1741134535348-nh


eBay PIC of the part:

11th Gen Honda Civic Spying on you? s-l1600 (1)

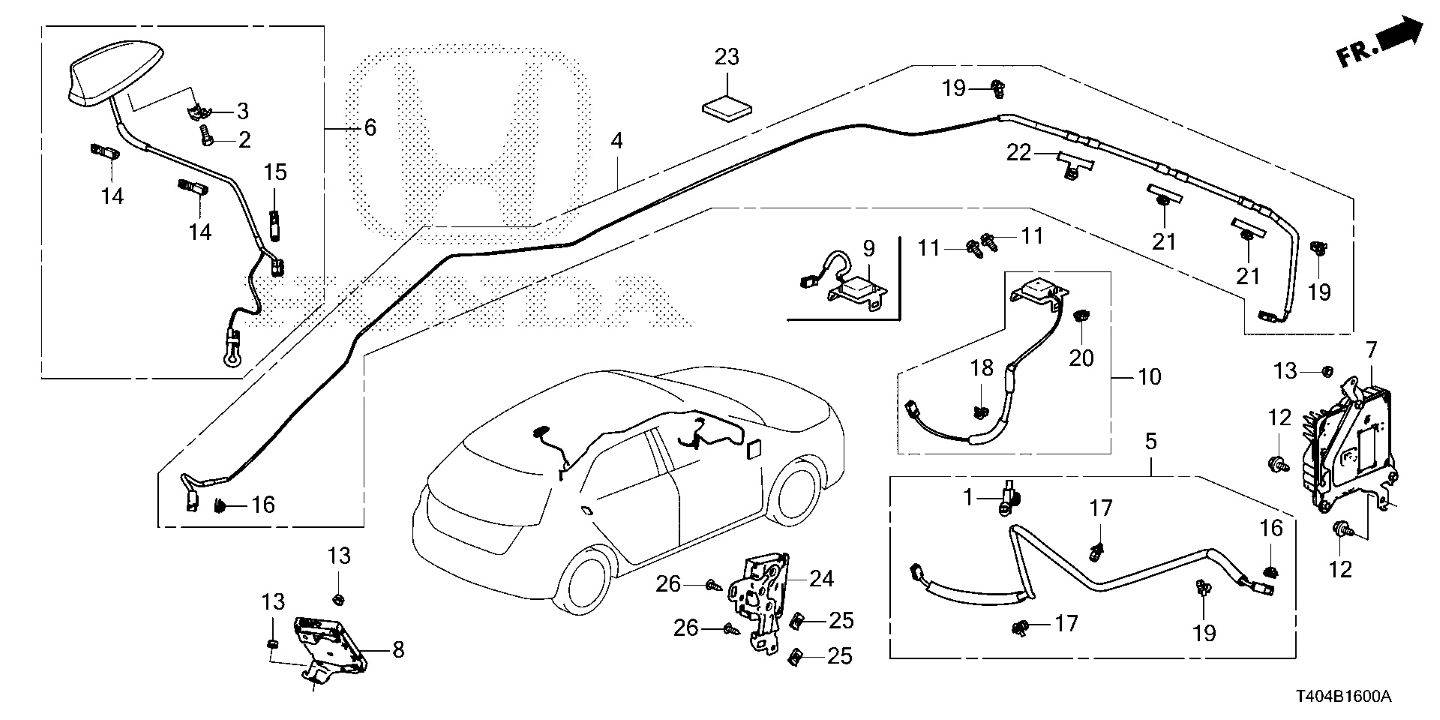

The previous antenna diagram that I posted was the wrong one. Here is the correct one (#10 is Antenna Assembly, GNSS (8B550-T20-A11)):

11th Gen Honda Civic Spying on you? 1741134589020-su


I think some of the online wiring diagrams are general in nature and may not be 100% accurate. Time to look at other places to learn more about more about the TCU...Hehe!
Sponsored



blueroadster

Senior Member
Joined
Apr 19, 2024
Threads
15
Messages
237
Reaction score
251
Location
Mid-Atlantic Region
Vehicle(s)
2024 Civic Type R, 2020 F-150, 1964 Impala SS

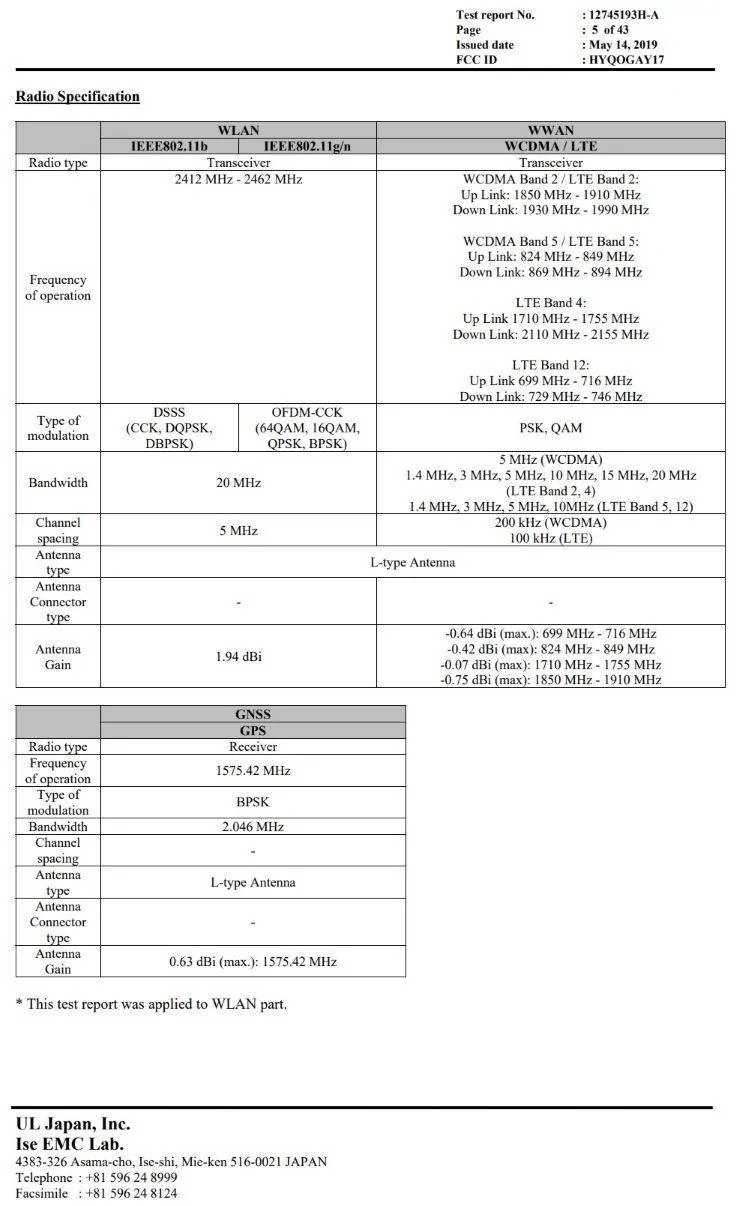

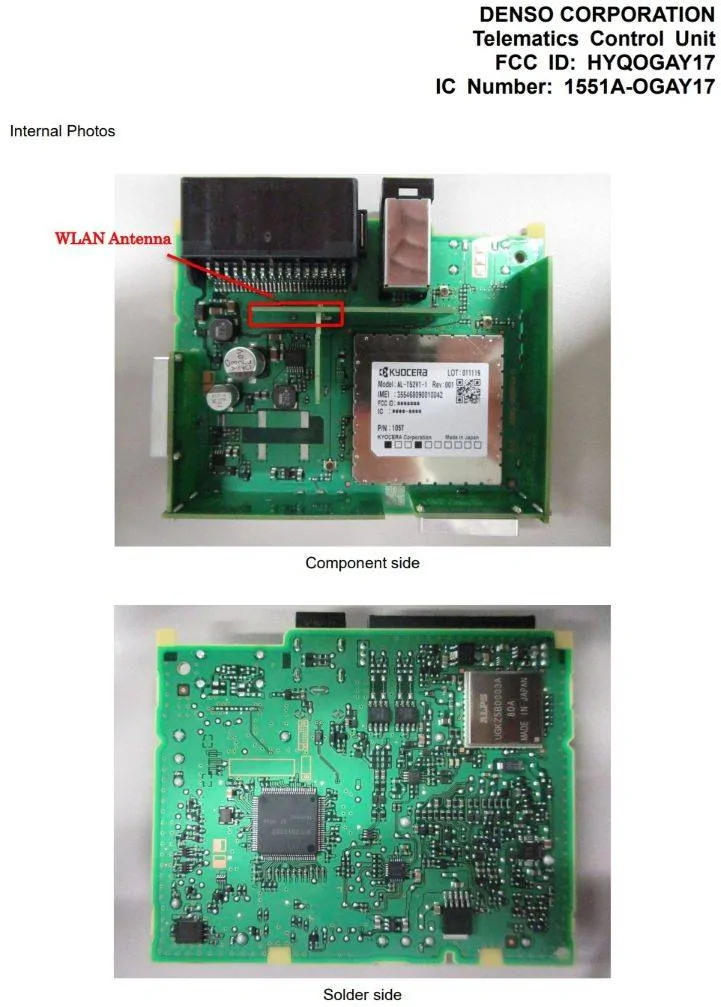

Antennas are internal to the TCU. Two transceivers ((1) WLAN (802.11b/802.11g/n) and (2) WWAN (WCDMA/LTE)) and one receiver (GNSS/GPS)

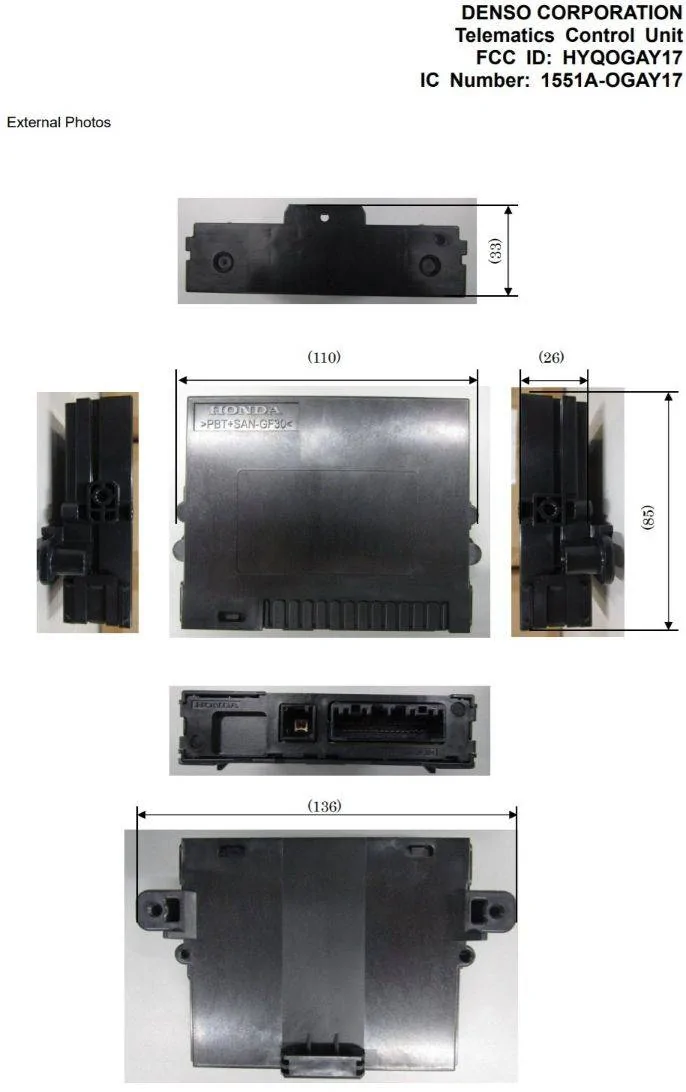

11th Gen Honda Civic Spying on you? External

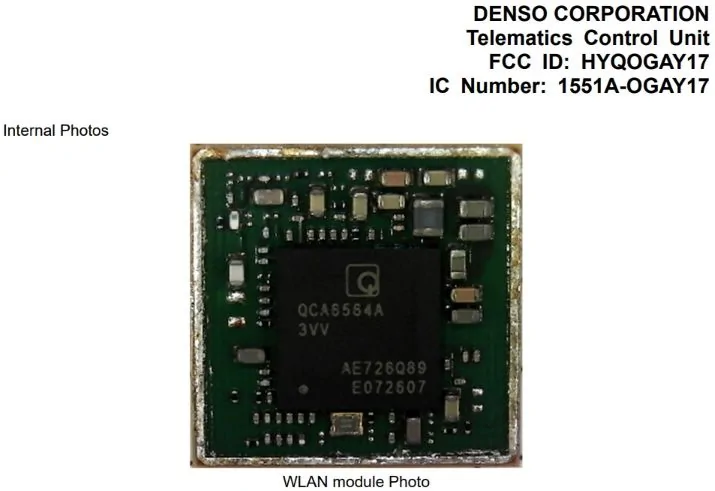

11th Gen Honda Civic Spying on you? 1741136979305-en

11th Gen Honda Civic Spying on you? 1741137013007-6m


blueroadster

Senior Member
Joined
Apr 19, 2024
Threads
15
Messages
237
Reaction score
251
Location
Mid-Atlantic Region
Vehicle(s)
2024 Civic Type R, 2020 F-150, 1964 Impala SS

blueroadster

Senior Member
Joined
Apr 19, 2024
Threads
15
Messages
237
Reaction score
251
Location
Mid-Atlantic Region
Vehicle(s)
2024 Civic Type R, 2020 F-150, 1964 Impala SS
Regarding data brokers, most auto manufacturers do not share all of the third-parties that they sell your data to. Usage Based Insurance (UBI) is a thing where insurance companies pay data brokers around 25 cents per feed for vehicle data.

Honda partnered with Verisk in December 2017: https://www.verisk.com/company/newsroom/honda-joins-the-verisk-data-exchange/

Honda participation with Verisk got enhanced in August 2020 for UBI: https://www.verisk.com/company/news...unities-for-usage-based-insurance-innovation/

Next Generation DrivingDNA Score was added in June 2021: https://www.verisk.com/company/news...-to-support-usage-based-insurance-innovation/

In April 2024, Verisk claims to no longer be receiving driving behavior data: https://fcra.verisk.com/#/

The above is just one data broker. Honda and other manufacturers still sell feeds to LexisNexis. Other data brokers where there may be a relationship include Acxiom, Epsilon, and Datalogix.

Article posted today from Consumer Reports regarding collection of driver data: https://www.consumerreports.org/ele...-collecting-sharing-driving-data-a1233378612/


blueroadster

Senior Member
Joined
Apr 19, 2024
Threads
15
Messages
237
Reaction score
251
Location
Mid-Atlantic Region
Vehicle(s)
2024 Civic Type R, 2020 F-150, 1964 Impala SS
Plenty of reading and even more if one cares to dig into the Kyocera AL-T52V1-1 telematics module.

Once the weather warms up, I'm going to see if I can remove the TCU from the car to yank out the transceiver antennas.



Sporky McGeuschky

Senior Member
First Name
Sporky
Joined
Feb 21, 2025
Threads
2
Messages
104
Reaction score
53
Location
Texas
Vehicle(s)
'25 Civic Type R, Boost Blue
Build Thread
Link
Sooo....
Where's the shop to get that wrap installed?


jtlctr

Senior Member
First Name
Jake
Joined
May 12, 2024
Threads
9
Messages
168
Reaction score
178
Location
01562
Vehicle(s)
2024 Civic Type R
Plenty of reading and even more if one cares to dig into the Kyocera AL-T52V1-1 telematics module.

Once the weather warms up, I'm going to see if I can remove the TCU from the car to yank out the transceiver antennas.

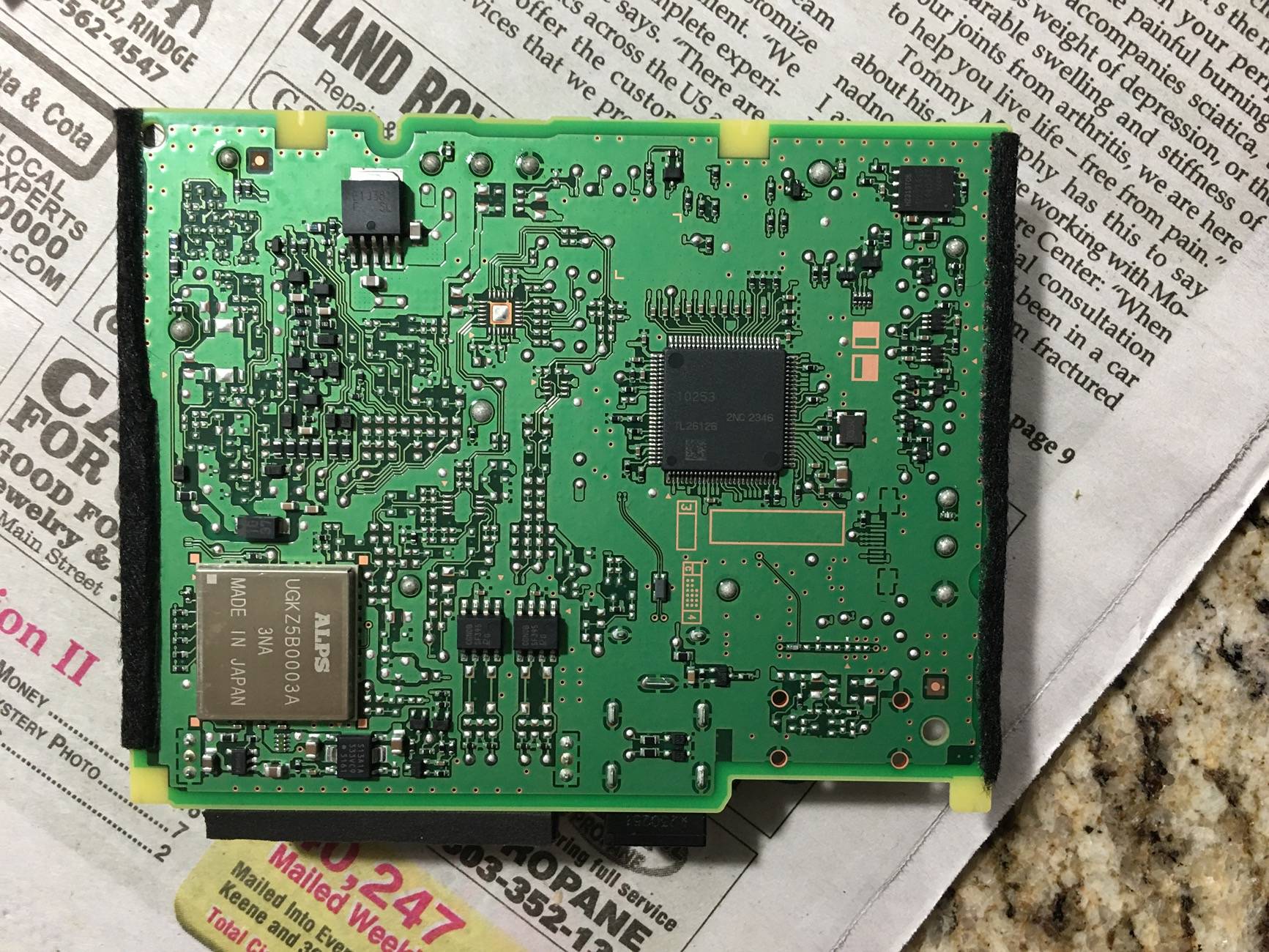

I had the TCU out last Spring to deal with it buzzing during a certain RPM window. It’s right under the center dash speaker and very easy to remove. I’ll be following this thread to see what you do with that little rat.

11th Gen Honda Civic Spying on you? 70F89FF4-0DD7-44FB-B2CF-17A72C0473F3


blueroadster

Senior Member
Joined
Apr 19, 2024
Threads
15
Messages
237
Reaction score
251
Location
Mid-Atlantic Region
Vehicle(s)
2024 Civic Type R, 2020 F-150, 1964 Impala SS

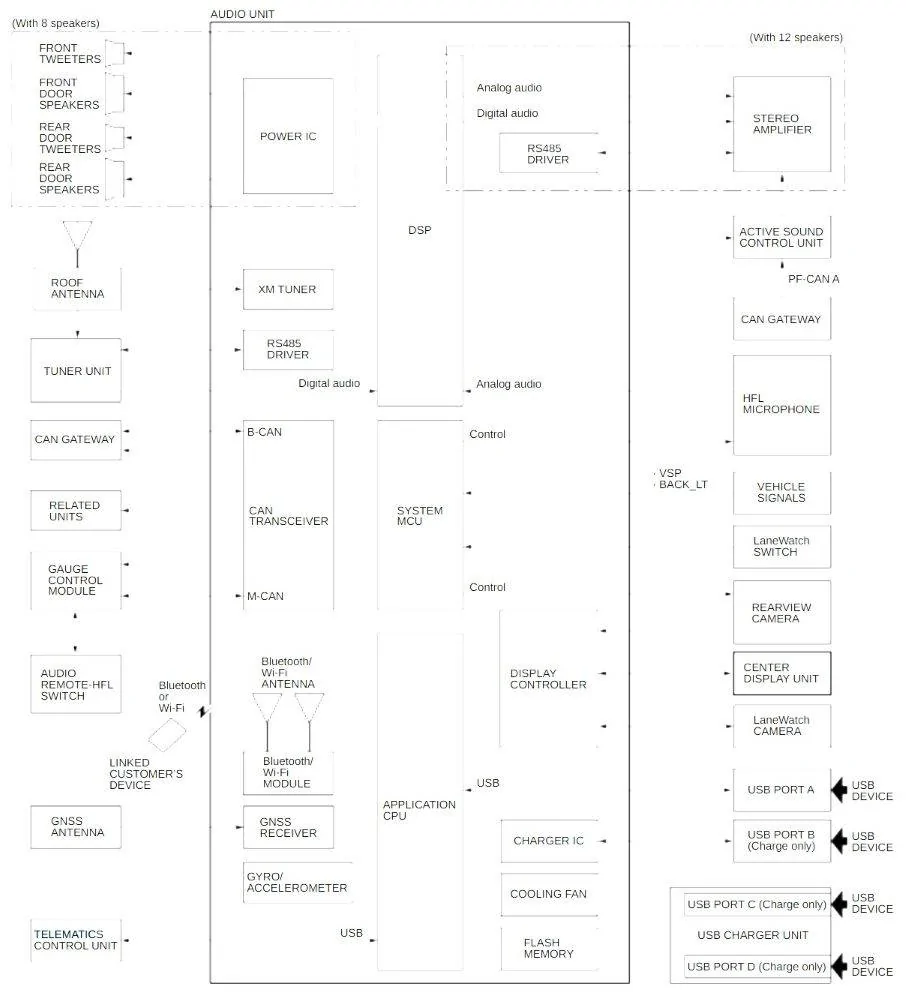

Starting to make more sense...The #10 Antenna Assembly, GNSS (8B550-T20-A11) that I mentioned in post #46 is a receiver (to be expected) and has a physical connection to the audio unit in this diagram:

11th Gen Honda Civic Spying on you? 1741149476519-1t

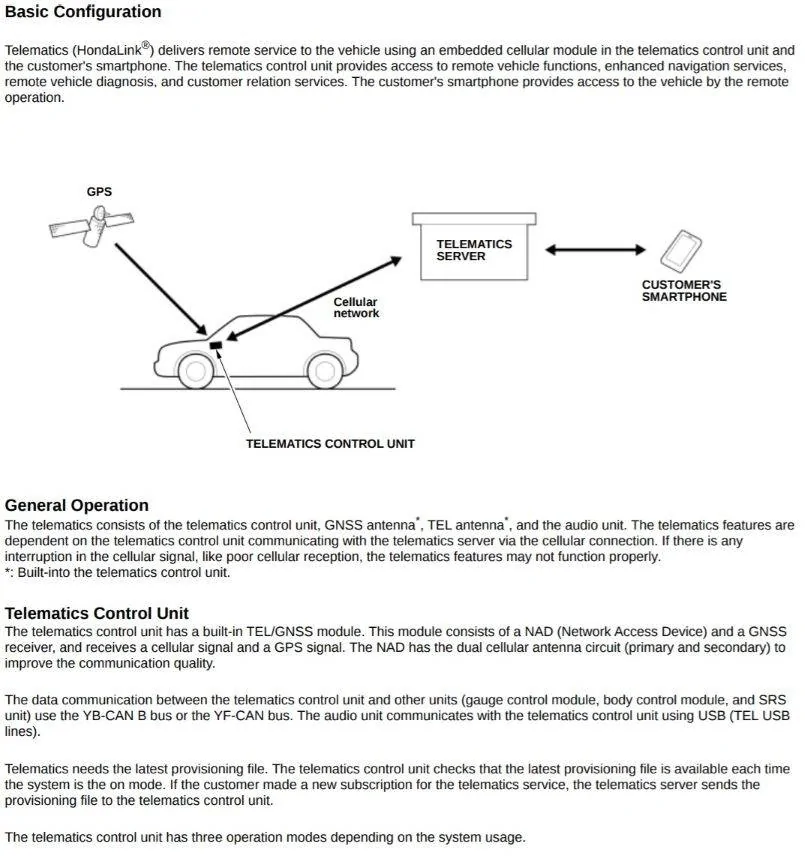

I recall reading somewhere that the FL5 uses two GPS/GNSS antennas. One being narrow and the other being more precise. With that said, the audio unit appears to receive the GPS/GNSS external antenna connection as a precise input whereas the TCU contains a redundant internal one where the TCU shares a two-way communications channel with the audio unit. That seems to corelate to the description of HondaLink:

11th Gen Honda Civic Spying on you? 1741151168085-vq


It seems like TCU is functioning as a branch off of the CAN bus to simply provide external communications rather than being more integrated as part of a trunk communicating with other modules on the CAN bus. As a start, I plan to just unplug the TCU and see what happens (thanks to @jtlctr for the tip regarding the TCU location). I do not presume much functionality will be lost since the audio unit has its own dedicated GPS/GNSS antenna but it will however register DTCs in the audio unit for not being able to communicate.



Superhatch

Senior Member
First Name
Jacob
Joined
Sep 22, 2023
Threads
4
Messages
78
Reaction score
104
Location
Wisconsin
Vehicle(s)
2025 RR FL5 CTR Arriving 3/7, 1991 CRX Si
Yeah I'm curious about what the software integration is like between the headunit and TCU. For those of us using CarPlay or Android Auto I'd assume there isn't any big loss in unplugging the antennas as our phones are doing the navigating for us anyway.


citrus

Senior Member
Joined
Aug 18, 2022
Threads
2
Messages
280
Reaction score
248
Location
USA
Vehicle(s)
CZ4A, Abarth 500, ZZW30, ND2 RF, RZ34, FL5
I had the TCU out last Spring to deal with it buzzing during a certain RPM window. It’s right under the center dash speaker and very easy to remove. I’ll be following this thread to see what you do with that little rat.

Do you have a post or photos detailing how you removed the TCU? I'm super new to the car.


jtlctr

Senior Member
First Name
Jake
Joined
May 12, 2024
Threads
9
Messages
168
Reaction score
178
Location
01562
Vehicle(s)
2024 Civic Type R
Do you have a post or photos detailing how you removed the TCU? I'm super new to the car.
I don’t, but it’s very easy. You’ll need some interior trim removal tools to pry up the center dash speaker behind the infotainment screen. Once that is out of the way, the TCU will be right there under the dash. The bracket is fastened with 2 screws with 8mm heads. Remove the screws and disconnect the wiring and it can be removed!
Do you have a rattle/buzz, or are you looking to deal with Big Brother?


citrus

Senior Member
Joined
Aug 18, 2022
Threads
2
Messages
280
Reaction score
248
Location
USA
Vehicle(s)
CZ4A, Abarth 500, ZZW30, ND2 RF, RZ34, FL5
I don’t, but it’s very easy. You’ll need some interior trim removal tools to pry up the center dash speaker behind the infotainment screen. Once that is out of the way, the TCU will be right there under the dash. The bracket is fastened with 2 screws with 8mm heads. Remove the screws and disconnect the wiring and it can be removed!
Do you have a rattle/buzz, or are you looking to deal with Big Brother?
Both! šŸ˜‚ Thank you for the information! Everything in the infotainment and CarPlay/AA still work normally without the TCU connected?


jtlctr

Senior Member
First Name
Jake
Joined
May 12, 2024
Threads
9
Messages
168
Reaction score
178
Location
01562
Vehicle(s)
2024 Civic Type R
Both! šŸ˜‚ Thank you for the information! Everything in the infotainment and CarPlay/AA still work normally without the TCU connected?
I never tried anything with the TCU disconnected because I was just dealing with the buzzing at the time. I ended up putting some foam strips in between the TCU and it’s mounting bracket to keep a little tension between them.
