[Now Available] AWE Exhaust Suite for the Honda FL5 Civic Type R

[urbo73]

So does the exhaust sound the same in all drive modes (COMFORT, SPORT, and +R)?

Does the ENGINE setting do anything for the exhaust sound or does it just control the throttle map? What about the ENGINE SOUND? Is that just for the fake engine noise, or does it also do something to the exhaust? I never quite understood how these two settings affect the OEM exhaust sound and if they affect the AWE exhaust sound in any way. @Sara/AWE ?

Sponsored



[ne_typer]

I'm disappointed that this loses the OEM valve functionality.



[albi]

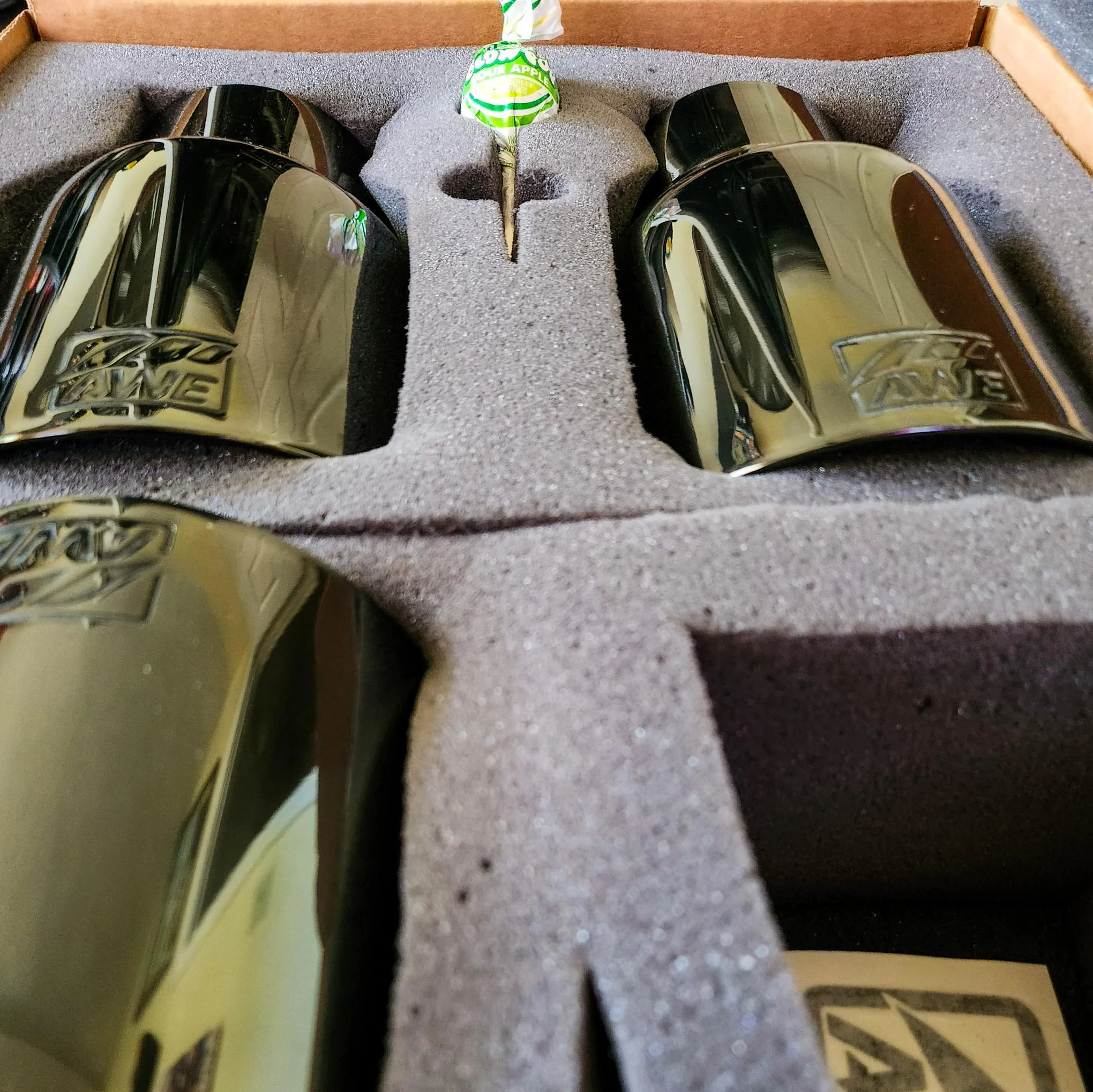

Them black diamond tips



[Sara/AWE]

I’m gonna say I disagree with this post. And guess what, that’s my opinion. I don’t find the valve useless when you have an option to operate it manually. The car can be made louder or more quiet with a remote and push of a button. I’ll speak for Milltek here because I own the exhaust and can speak from experience. Their valve system allows you to control it remotely. The same was available for the FK8 and the Remus exhaust. I’m sure there were others available.

My opinion is that it’s a bad take to say it’s pointless. When the option is given to manually control how loud or soft the exhaust is by using a proper remote controlled setup, I feel that is the best of both worlds. If it was “useless” , I’d say most manufacturers, oem or after market would never incorporate them. When on the highway going 70-80mph, the last thing I personally want to hear is a loud(er) cabin. I close the valve and the sound drops a decent bit. When I’m in the city and I want more grunt, I open the valve and notice a substantial increase in exhaust tone.

To elaborate, when I was discussing the valved exhaust I was referring to the stock exhaust valve functionality. Very different from other applications which allows the driver full control of opening/closing. On the stock system there is no control which is, as you stated, the main reason for having a valved exhaust to begin with

You know what, I take that back. I saw a tip conversion listed for the FK8, but not yet for the FL5. It may be a case of it being a special request? I will defer to @Sara/AWE for an answer.

No tip conversions on this application, but if you want to change color down the line you can special order. We don't list tips separately as they don't fit stock or other aftermarket systems and we don't want to mislead folks



[Sara/AWE]

I can’t tell from the pictures, but as long as it’s a proper v-band clamp and not a cheap clamp, it shouldn’t be an issue. If cheap clamps, you can buy 3” v-bands on Amazon for $20. It’ll distribute a more even clamping force.

We don't have v band connections in our system, however, our slip fits and 3" band clamps are more than sufficient for holding the system in place if positioned correctly!

Is anyone else remotely worried about the slip fittings? My opinion, but i personally prefer 3 bolt flanges.

If installed correctly slip fit connections are superior to flanges. Flanges don't allow for any rotational adjustment, and that can be extremely beneficial when installing a system. We have some tips/tricks for installing them perfectly (we will also have an install video up soon) and I am just a PM away if anyone needs a hand or has questions



[Fresh]

I’m gonna say I disagree with this post. And guess what, that’s my opinion. I don’t find the valve useless when you have an option to operate it manually. The car can be made louder or more quiet with a remote and push of a button. I’ll speak for Milltek here because I own the exhaust and can speak from experience. Their valve system allows you to control it remotely. The same was available for the FK8 and the Remus exhaust. I’m sure there were others available.

My opinion is that it’s a bad take to say it’s pointless. When the option is given to manually control how loud or soft the exhaust is by using a proper remote controlled setup, I feel that is the best of both worlds. If it was “useless” , I’d say most manufacturers, oem or after market would never incorporate them. When on the highway going 70-80mph, the last thing I personally want to hear is a loud(er) cabin. I close the valve and the sound drops a decent bit. When I’m in the city and I want more grunt, I open the valve and notice a substantial increase in exhaust tone.

I couldn't agree with this more. I used to work at Honda R&D Americas in Marysville. This button (and linked valve) are purposely placed here for sound concerns. There is no reason Honda would have included it otherwise... if it wasn't needed, they would just save the hassle, programming, money etc.

Now... with that out of the way, I VERY MUCH SO like the sound of your exhaust system. Throw the valve back in it from Honda and you can take my money to make it work with the OEM sensors and valve.



[Sara/AWE]

I couldn't agree with this more. I used to work at Honda R&D Americas in Marysville. This button (and linked valve) are purposely placed here for sound concerns. There is no reason Honda would have included it otherwise... if it wasn't needed, they would just save the hassle, programming, money etc.

Now... with that out of the way, I VERY MUCH SO like the sound of your exhaust system. Throw the valve back in it from Honda and you can take my money to make it work with the OEM sensors and valve.

Hey Fresh, not sure what you are referring to on the Type R, no button exists for the valve and no control from the cockpit like what you would expect from a traditional valved exhaust from the factory. (drive mode does not influence valve positioning)

The valve on the type R is solely dependent on throttle input, and opens at a threshold high in the rev range (for back pressure reasons--that's it). We achieved the same result (louder on throttle and tame when you are cruising, plus drone-free operation with our 180 Technology® resonators) so it was not necessary to add the additional cost to the system and components by adding a valve, especially since backpressure isn't an issue here (organically).



[urbo73]

Hey Fresh, not sure what you are referring to on the Type R, no button exists for the valve and no control from the cockpit like what you would expect from a traditional valved exhaust from the factory. (drive mode does not influence valve positioning)

The valve on the type R is solely dependent on throttle input, and opens at a threshold high in the rev range (for back pressure reasons--that's it). We achieved the same result (louder on throttle and tame when you are cruising, plus drone-free operation with our 180 Technology® resonators) so it was not necessary to add the additional cost to the system and components by adding a valve, especially since backpressure isn't an issue here (organically).

Can you reply to my questions in post 31 please? Thanks!



[pigfacedalarm]

So does the exhaust sound the same in all drive modes (COMFORT, SPORT, and +R)?

Does the ENGINE setting do anything for the exhaust sound or does it just control the throttle map? What about the ENGINE SOUND? Is that just for the fake engine noise, or does it also do something to the exhaust? I never quite understood how these two settings affect the OEM exhaust sound and if they affect the AWE exhaust sound in any way. @Sara/AWE ?

Drive modes are just throttle mapping.
Engine sound is just piped in engine noise. The valve still opens if you have comfort mode engine sound on, you just need to be over a certain throttle percentage.



[Fresh]

Hey Fresh, not sure what you are referring to on the Type R, no button exists for the valve and no control from the cockpit like what you would expect from a traditional valved exhaust from the factory. (drive mode does not influence valve positioning)

The valve on the type R is solely dependent on throttle input, and opens at a threshold high in the rev range (for back pressure reasons--that's it). We achieved the same result (louder on throttle and tame when you are cruising, plus drone-free operation with our 180 Technology® resonators) so it was not necessary to add the additional cost to the system and components by adding a valve, especially since backpressure isn't an issue here (organically).

Interesting. Can you theorize why Honda placed it there in the first place?

Can you also explain the +12dbA gain in noise at 1-meter when my mic is axially aligned with the center exhaust tip/discharge when +R mode is engaged?



[dandaman15]

Interesting. Can you theorize why Honda placed it there in the first place?

Can you also explain the +12dbA gain in noise at 1-meter when my mic is axially aligned with the center exhaust tip/discharge when +R mode is engaged?

Seems like she told you its for backpressure improvements at lower rpms and its activated via throttle input % (which may have a difference threshold in different modes). She didnt say it had no effect on the sound, just that the same control can be had without the valve in place.

If you want an exhaust with a valve this isnt the one for you and move on.



[Sara/AWE]

Interesting. Can you theorize why Honda placed it there in the first place?

Can you also explain the +12dbA gain in noise at 1-meter when my mic is axially aligned with the center exhaust tip/discharge when +R mode is engaged?

Our theory was for backpressure purposes or to direct flow through the other parts of the system. What we know for sure is that operation of the valve does not change when changing modes.

Now that is not to say the modes do nothing, as another user mentioned it changes settings within the ECU, which is likely what you are hearing when you go to R mode as the RPMs pick up. However, if you take a look into that center tip you will not see the valve open when you get into R mode, nor does it remain closed in comfort mode. Would have been great if Honda did give us the option to open/close the valve on the fly!

Drive modes are just throttle mapping.
Engine sound is just piped in engine noise. The valve still opens if you have comfort mode engine sound on, you just need to be over a certain throttle percentage.

Thanks for jumping in, spot on!

Can you reply to my questions in post 31 please? Thanks!

Apologies that I missed your question! The exhaust will sound similar in all modes, however due to the ECU changes in the various modes, other settings may be slightly different like a higher idle in R mode. (but that has more to do with your actual tune and computer than the exhaust system itself )



[randomFL5guy]

Any plans on a system for the DE5 Integra Type S? If so, could you share when we might expect those?



[Sara/AWE]

Any plans on a system for the DE5 Integra Type S? If so, could you share when we might expect those?

Yes we do, working on getting a car into our facility to begin development. Since we have not begun R&D yet no hard dates to share, but we will be posting about it as it gets closer to release!



[LaFlamaBlanca]

Why are people so stuck on this valve? Everyone complains the car is too quiet, wants to buy an exhaust, and then concerned when they cant make it quietter? Baffling to me. The exhaust isnt even loud.

if you want a quiet Type R, keep the stock exhaust, or better yet buy a Buick Regal
